radio frequency CO2 laser marking machine

2017-02-22

  • Introduction
  • Configure
  • Characteristic
  • Parameter
  • Material
  • Industry
  • Brief introduction: Laser generator: Imported RF metal tube laser generator from US, stable light-output, low failure rate, long life, the costs of use and maintenance are very low · Software uses Windows interface, compatible with CorelDraw, AutoCAD, PhotoShop and other software output files, support PLT, PCX, DXF, BMP and other format files, direct use SHX, TTF font; · Support automatic encoding, print serial number, batch number, date, bar code, two-dimensional code, automatic jump number, etc; ·To Design any graphics text by computer, flexible and convenient, no printing consumables, low processing cost; · Non-toxic laser marking , no deformation, no pollution, wear resistance
  • Laser generator imported from US, three - dimensional dynamic focusing system, high - speed galvanometer
  • ◆ Equipment configured imported RF laser generator, with ligh-output stability and other characteristics; Fast marking speed,strong cutting ability, high precision, good effect. ◆ Imported RF laser generator, strong cutting ability, especially for the leather drilling. ◆ High-performance professional industrial control-computer, make the operation more stable without worries ◆ Genuine marking machine software, to achieve the editing function of graphics and text. ◆ Use the red light positioning system, make the processing accurate, not easy to produce waste. ◆ Fast cutting speed, large format, to meet the requirements of high standard ◆ equipped with three-dimensional dynamic focus system, the processing area is adjustable according to the needs.
  • Model No: RF-260
    Laser wavelength: 10.6μm
    Output power: 250W
    Power stabiliy : (8h)< ± 1% rms
    Beam quality:M2<5 (@25A)
    Pulse repetition frequency:≤20KHz
    Focus lens:Three - dimensional dynamic focus
    Marking area:300×300mm,350×350mm,400×400mm,450X450mm,500x500mm
    Marking speed:250 characters / sec (Roman font, word height 1mm)
    Mini marking characters:0.3mm
    Mini marking line width:50μm
    Electricity demand:220V±22V / 50Hz / 30A
    Whole power:<2.5KW

    Cooling method:water cooling

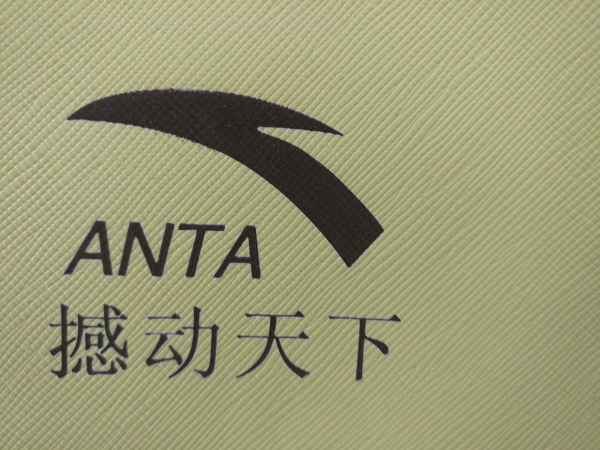

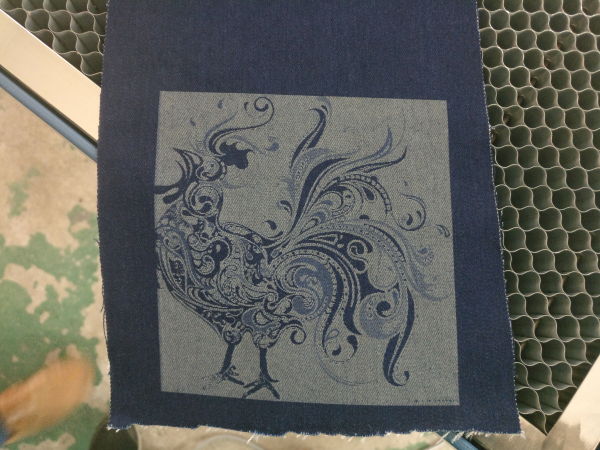

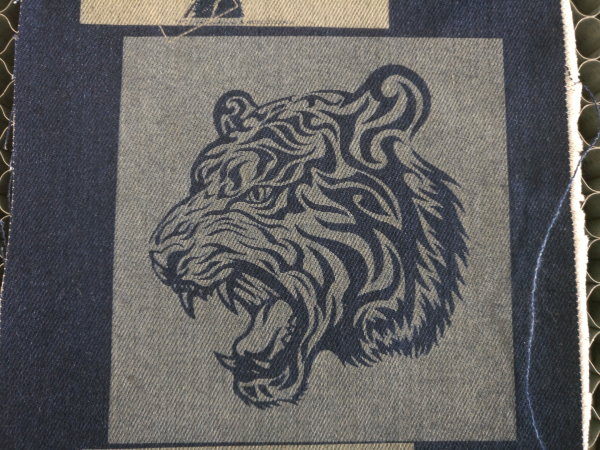

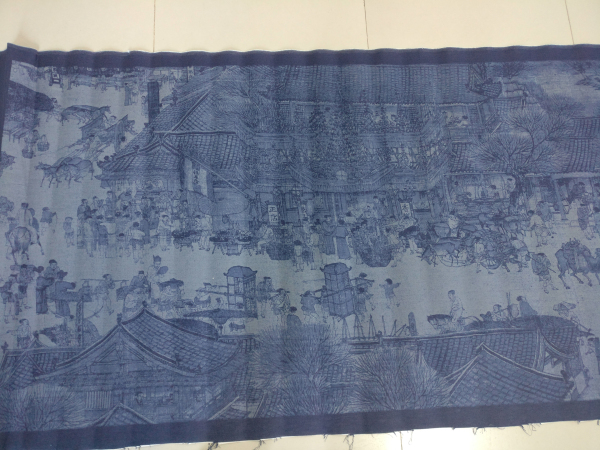

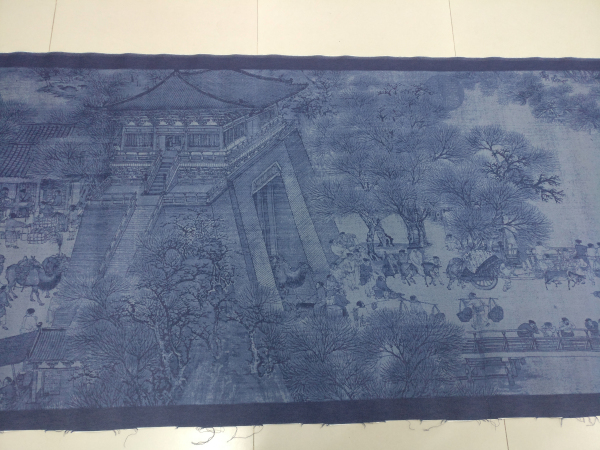

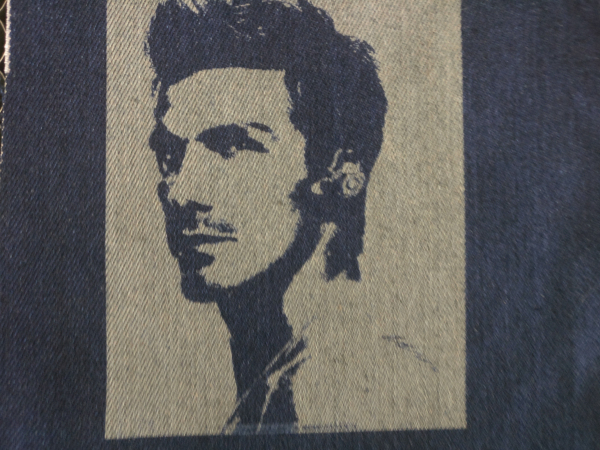

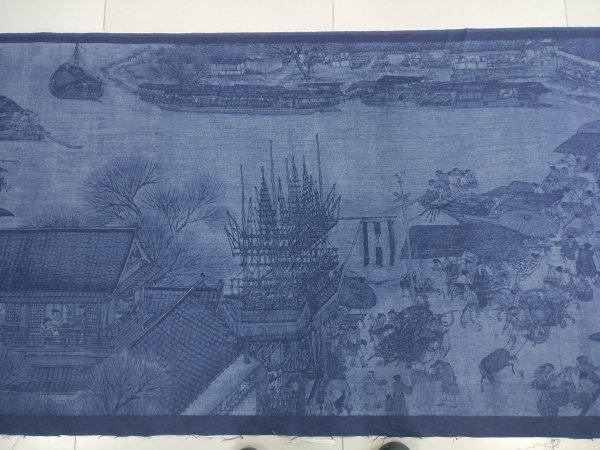

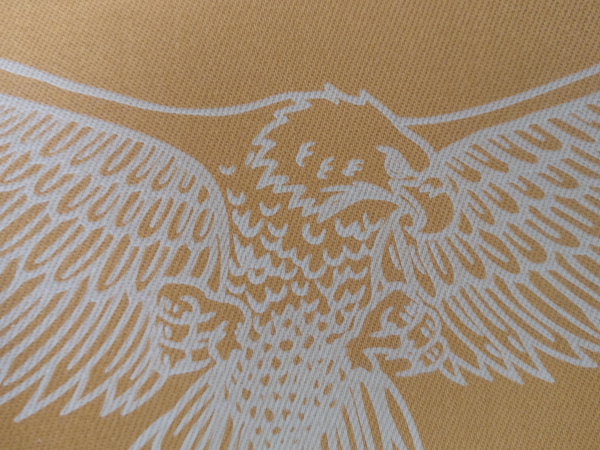

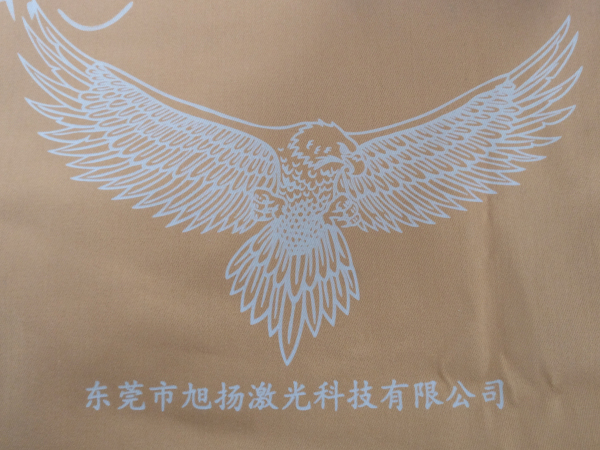

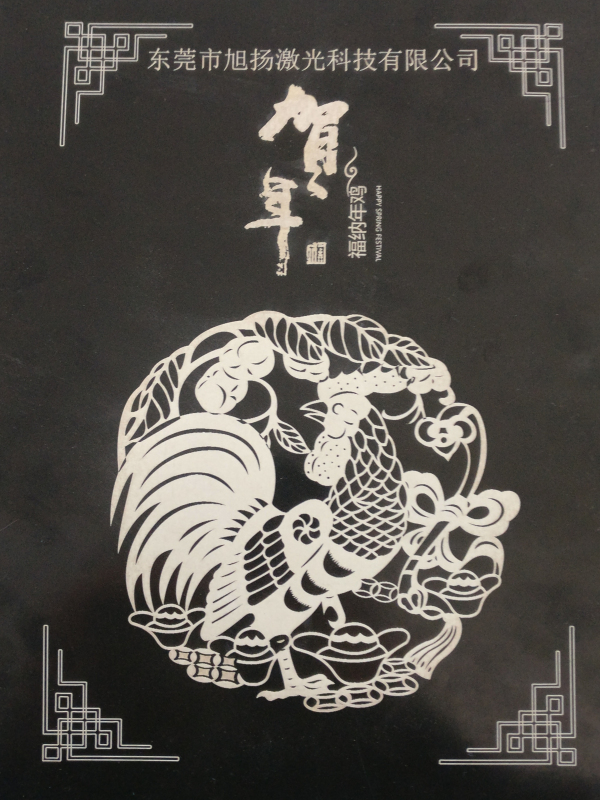

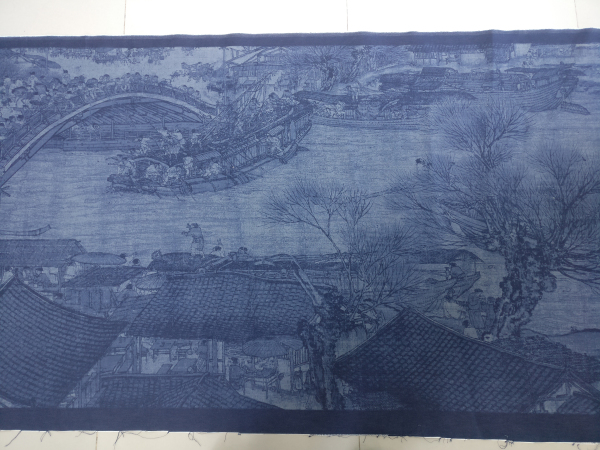

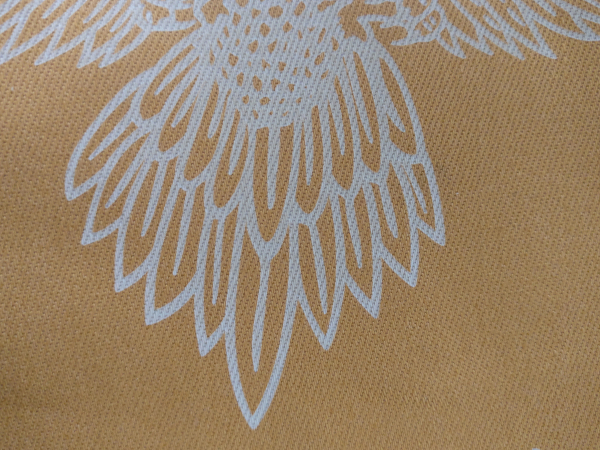

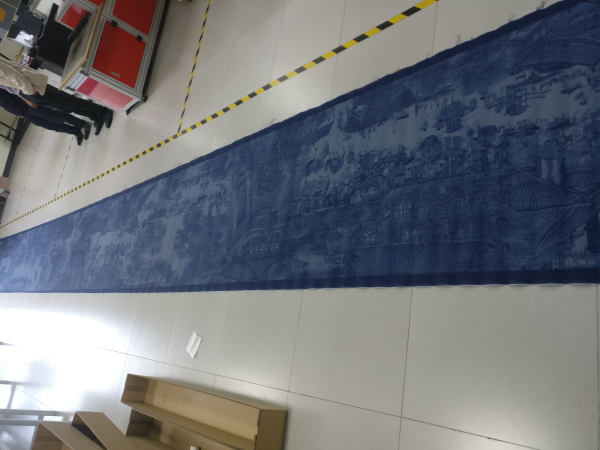

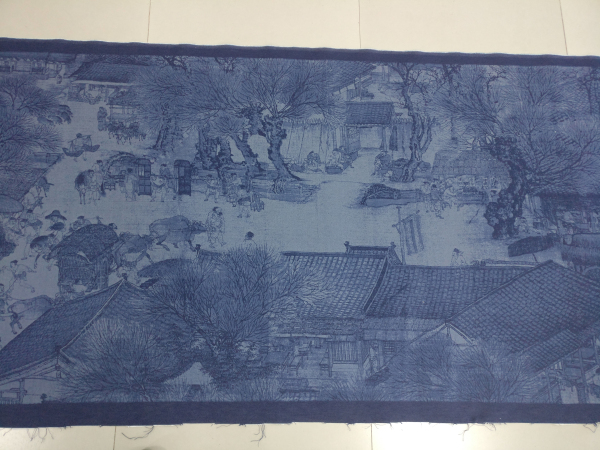

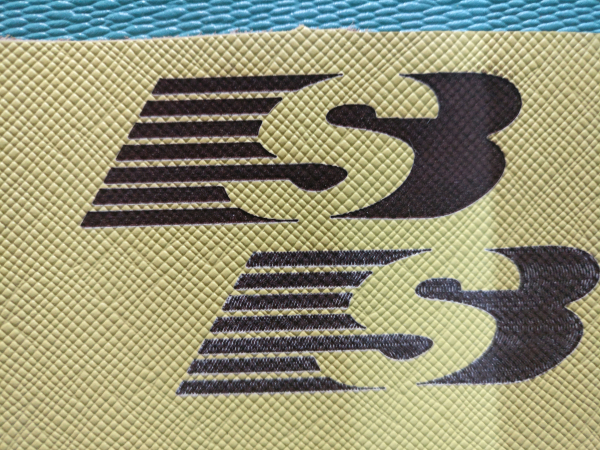

  • Leather marking, denim custom pattern marking, catering, clothing, home textiles, gifts, handicrafts, cosmetic, food, toys, tobacco and alcohol, medicine, etc.
