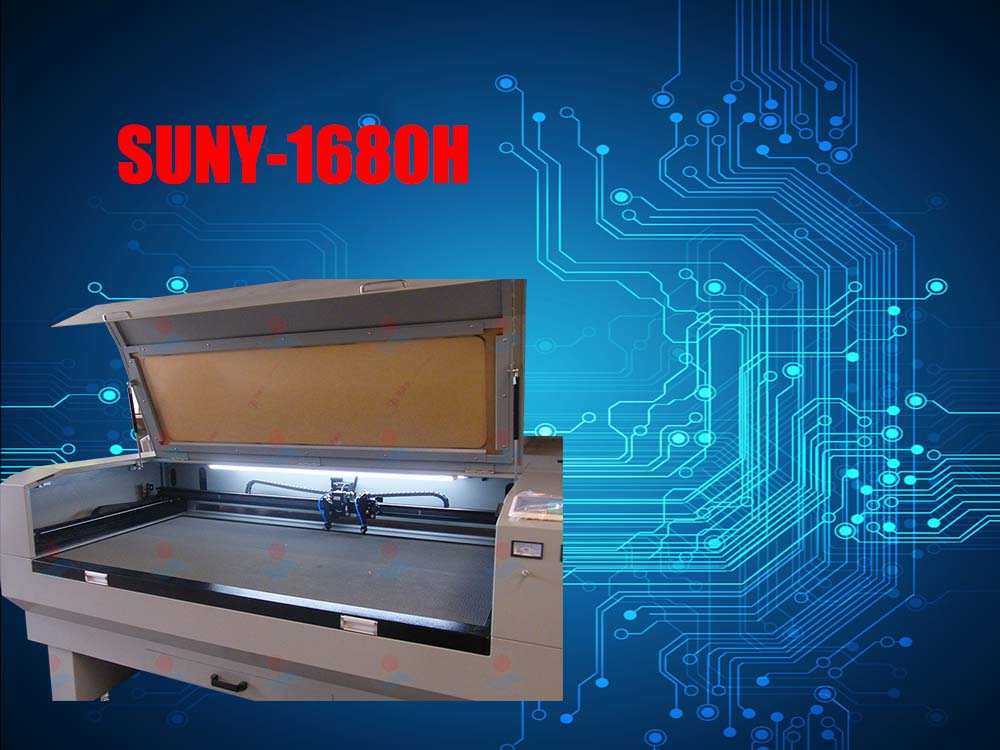

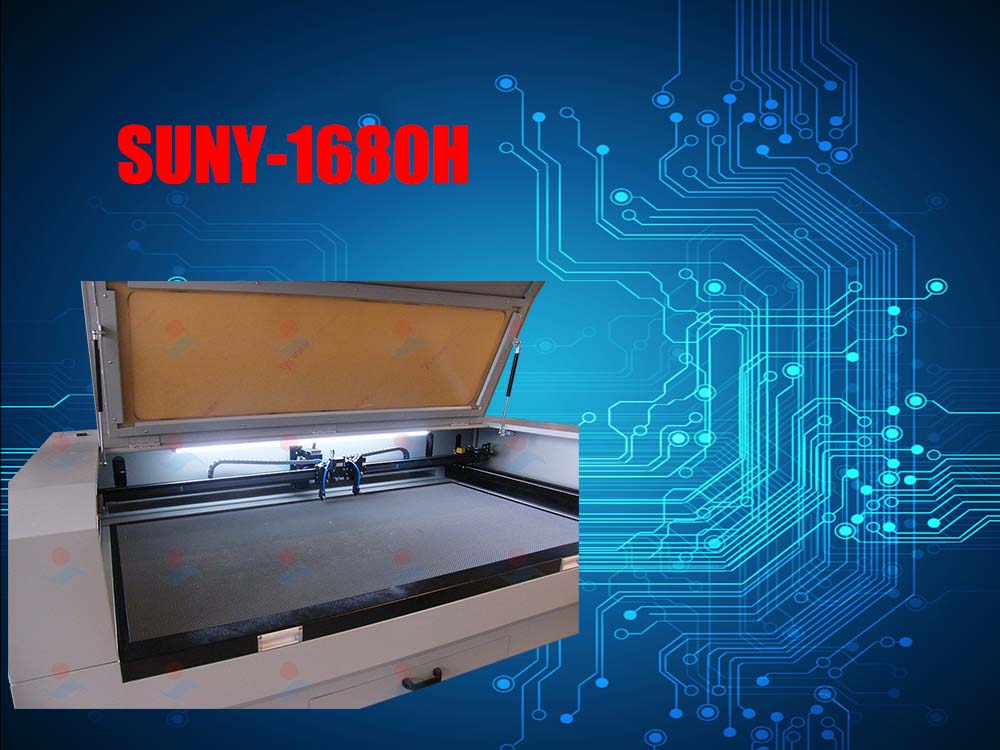

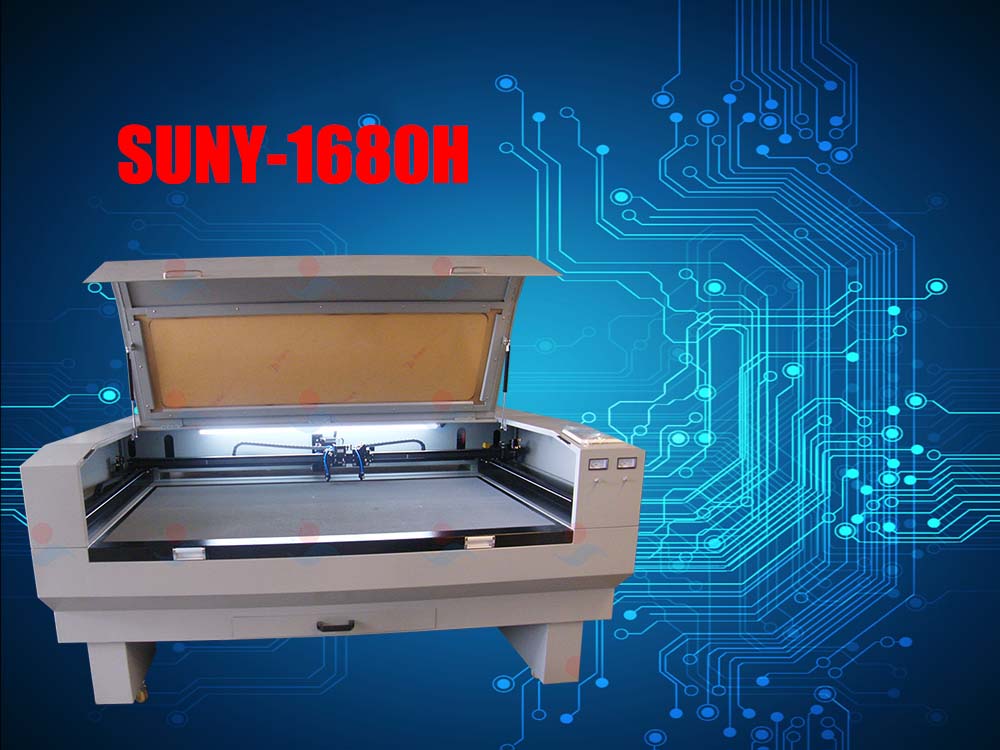

SUNY-1680H double heads cross cutting laser cutting machine

2016-05-09

  • Introduction
  • Configure
  • Characteristic
  • Parameter
  • Material
  • Industry
  • SUNY-H series laser cutting machine use 1. With double laser heads, light path optimization. 2. The distance between two heads can be adjusted automatically instead of manual adjustment,easy operation, save materials, improve working efficiency. 3. Smooth edge without burr、avoid polishing、no noise、no dust and dirt、fast working speed、 high accuracy、less waste、high efficiency. 4. Suitable for large and medium-sized enterprises in bulk production, also can meet small enterprise and individual process's production demand. 5. Running speed and laser energy are real-time adjustable,greatly make the customers'operation convenient. apply embroidery、clothing、shoemaking、trademark processing、craft gifts etc.
  • South Korea imports six balanced linear guide rail
    United States ray stepper motor
    United States ray drive
    Singapore optical system
    Japan imported transmission belt
    Embedded Samsung 128M memory
    2.0U disk interface
    New generation master card
    Devin LCD
    80/100/120/130/150/170W Chinese Academy of science and the development of laser tube
    High performance laser power supply
    Xu Yang new software development system
    Taiwan switching power supply
    Guangzhou wind system
    Zhongshan air compressor
  • 1 imported square linear guide, life can reach more than 20 years
    2. Optical lens using high strength Gold silicon and aspheric focusing lens such that the lens resistant paint, high temperature resistant, does not need to be replaced frequently, greatly reducing the use cost, non spherical lens focusing small diameter, better cutting effect < br / > 3 towline imported from Germany
    4 all the optical frame has a simple structure, convenient adjustment, easy maintenance of
    lens 5 the DSP motion control system, smooth running, high speed operation. Modular design, unified installation, strong anti-interference ability, easy maintenance and replacement of parts
    6 emergency stop switch can quickly turn off the power of
    . The 7 filter, improve anti-interference of
    machine 8 DC switching power supply
    9 using the universal wheel for adjustment of the machine stable
    primer 10 install the U.S. import chip driver
    11 unique "side blowing" system to effectively protect the laser head, so that the maintenance of the laser head is more convenient
    12 mechanical structure optimization design, the overall shape of the smallest size, not only to save your valuable space, but also the structure of the deformation of high precision engraving
    13 direction before and after the whole material can be Banfang, without cutting
    14 through CE, FDA certification
    Graphic format: BMP, PLT, DXF, DST, AI
    High speed cutting function:
    Red light positioning function: you can choose
    Offline output function:
    Layered output function:
    Air cooling functions:
    Before and after the material function:
    Foot switch function: optional

    : optional telephoto lens Open cover protection:
    Emergency stop switch:
    The blade working platform: optional
    Ultra quiet fan: optional
    Closed type cold water machine: optional
  • Laser type Domestic CO2 laser
    laser power

    80W/100W/120W/130W/150W/170W(Matching)

    Working area 1600*800mm
    Engraving speed 0-1500mm/s
    Cutting speed 0-800mm/s
    Repeat accuracy ±0.05mm
    Motion system CNC control system
    Cooling mode Forced water cooling and protection system
    working voltage 220V±10%/50HZ
    working temperature 0℃-45℃
    Working humidity 5%-95%
    control software Genuine sunylaser software
    Support format BMP、PLT、AI、DXF、DST
    Outline dimension 2150*1460*1150mm
    Machine weight 320KG
  • Suitable for wood, paper, leather, cloth, organic glass, epoxy resin, acrylic, wool, plastic, rubber, ceramic, crystal, jade, bamboo products, such as non metal materials.














  • The models are widely used in leather, cloth material cutting, engraving of the organic acrylic sheet, electronic industry adhesive tape, double-sided adhesive tape, pet, PC material cutting and carving, handicraft industry of bamboo products, engraving and cutting, printing rubber plate engraving can also be cut in the engraving of glass ceramic paper and other non-metallic materials.
