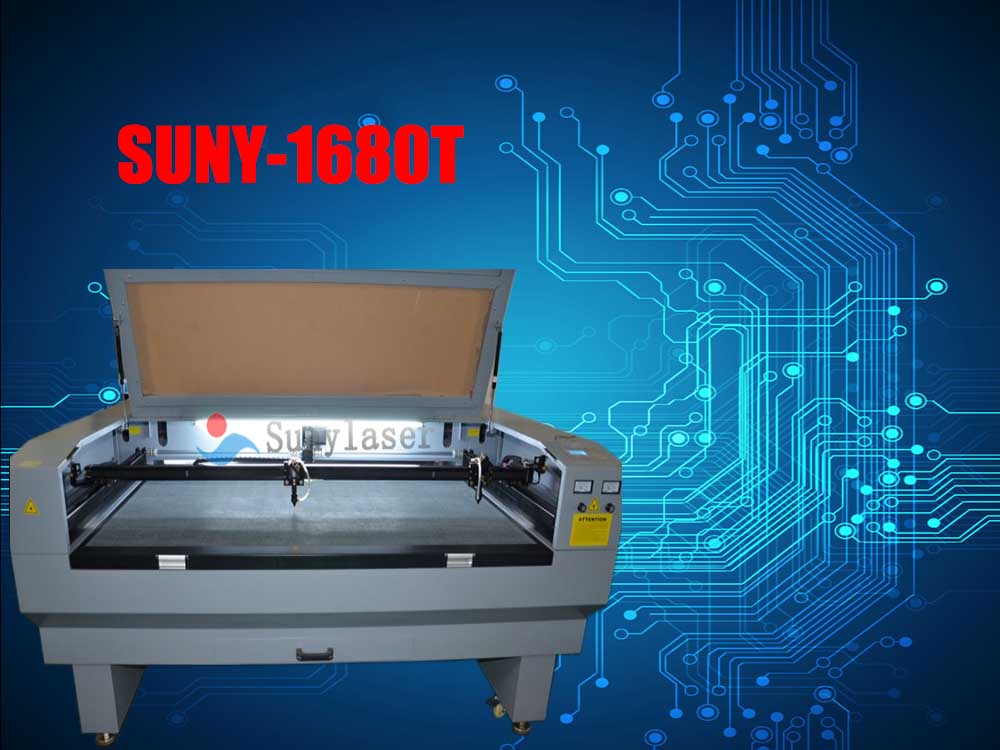

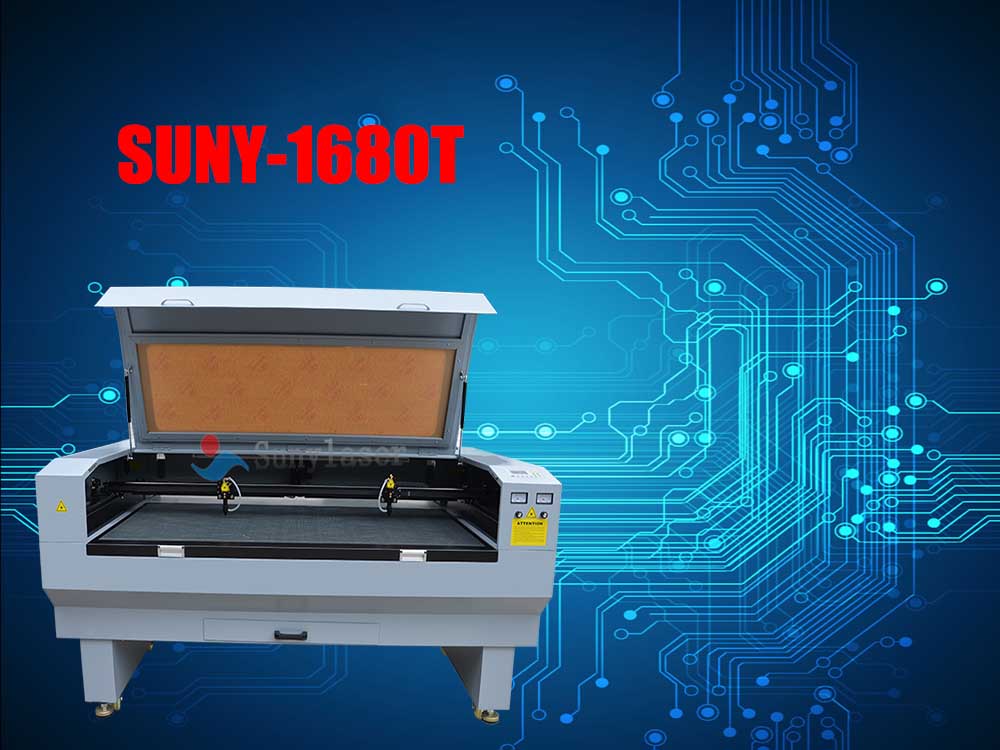

Suny-1680T double head laser engraving machine
2016-04-25
- Introduction
- Configure
- Characteristic
- Parameter
- Material
- Industry
- SUNY-T series laser machine is one new model of SUNYLASER, equipped with at least 2 laser heads, Moving away from random, complete machine with two laser tubes, two laser power supply, imported linear guideway, imported stepper motor and driver, stainless honeycomb worktable, use world-leading self-developed control software, can adjust the power of each head separately, resolve the problems of can’t be adjusted in the past, this series are widely used in clothing leathers, embroidered cloths.
- A. the United States imported stepper motor and drive system
B.SUNYLASER control system
C. uses the foreign import six balanced linear guide rail
D. dual transmission mode for the USB2.0 port
E. Yingde liquid crystal display, user-friendly button control panel
F. domestic laser (80/100/120/130/150/170W) matching
G. optical system uses all imported laser lens
H. high strength stainless steel honeycomb base plate
I. chassis integration structure
J. supports U disk download data
- 1 imported square linear guide, life can reach more than 20 years
2. Optical lens using high strength Gold silicon and aspheric focusing lens such that the lens resistant paint, high temperature resistant, does not need to be replaced frequently, greatly reducing the use cost, non spherical lens focusing small diameter, better cutting effect < br / > 3 towline imported from Germany
4 all the optical frame has a simple structure, convenient adjustment, easy maintenance of
lens 5 using DSP motion control system, running smoothly. Modular unified design, installation, anti-interference ability, easy to repair and replacement parts
6 emergency stop switch. You can quickly turn off the power supply
7 filter to improve the anti-interference performance of the machine
8 DC switching power supply
9 using the universal wheel for adjustment of the machine stable
primer 10 the United States imported chip
driver installation Effectively protect the laser head 11 unique "quench" system, make the maintenance more convenient
laser head 12 mechanical structure optimization design, the minimum size of machine, not only save your valuable space, and the structure deformation engraving precision
13 direction before and after the whole material can be Banfang, without cutting
14 through CE, FDA certification
Graphic format: BMP, PLT, DXF, DST, AI
High speed cutting function:
The red light positioning function: you can select
Offline output functions:
Layered output functions:
Air cooling functions:
Before and after the material function:
Foot switch function: optional
Laser type Domestic CO2 laser laser power 80W/100W/120W/130W/150W/170W(Matching) Working area 1600*800mm Engraving speed 0-1500mm/s Cutting speed 0-800mm/s Repeat accuracy ±0.05mm Motion system CNC control system Cooling mode Forced water cooling and protection system working voltage 220V±10%/50HZ working temperature 0℃-45℃ Working humidity 5%-95% control software Genuine sunylaser software Support format BMP、PLT、AI、DXF、DST Outline dimension 2150*1460*1150mm Weight 320KG
Suitable for wood, paper, leather, cloth, organic glass, epoxy resin, acrylic, wool, plastic, rubber, ceramic, crystal, jade, bamboo products, such as non metal materials.
- Applicable to garment leather, cloth toys, computer embroidery and clipping, electronic and electrical appliances, clothing the drilling template, model, arts and crafts, advertisement decoration, printing and packaging, paper products, such as industry
