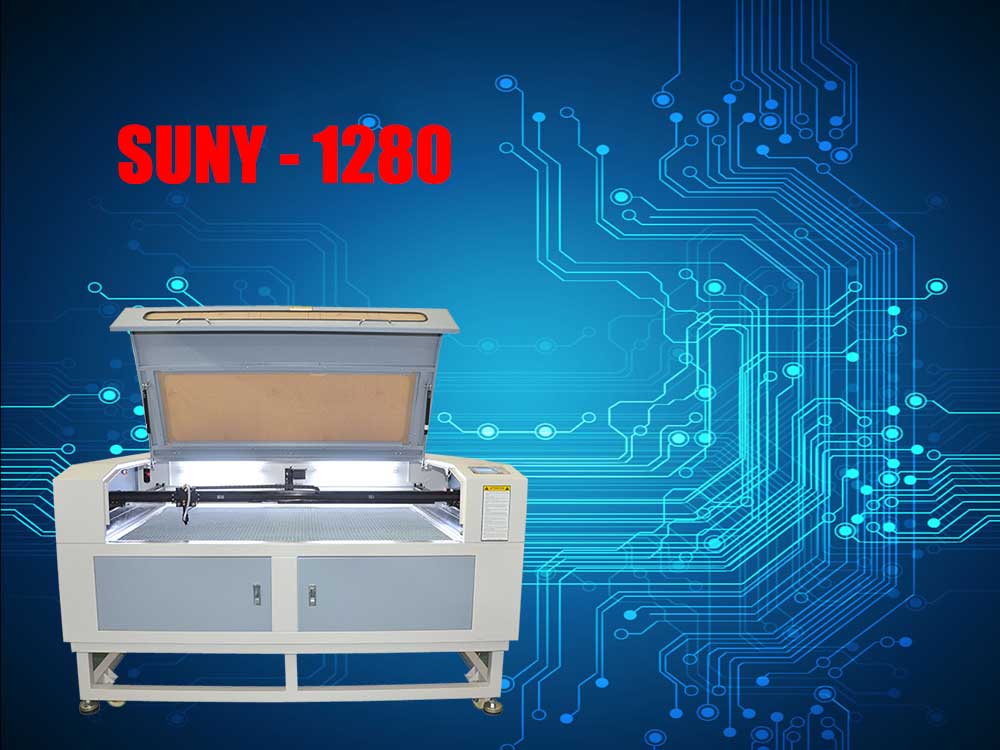

Suny-1280T double head laser engraving machine
2016-04-25
- Introduction
- Configure
- Characteristic
- Parameter
- Material
- Industry
- SUNY-T series laser machine is one new model of SUNYLASER, equipped with at least 2 laser heads, Moving away from random, complete machine with two laser tubes, two laser power supply, imported linear guideway, imported stepper motor and driver, stainless honeycomb worktable, use world-leading self-developed control software, can adjust the power of each head separately, resolve the problems of can’t be adjusted in the past, this series are widely used in clothing leathers, embroidered cloths.
- A. germanyimported fully stepper motor and drive system
B.SUNYLASER control system
C. imported six balanced linear guide
D. dual transmission of USB2.0
Devin E. in the UK, the liquid crystal display, user-friendly button control panel
F. domestic laser (80/100/120/130/150/170W) matching
G. optical system uses all imported laser lens
H. high strength stainless iron honeycomb plate
The I. chassis integration structure
J. support U disk to download data
- Special mechanical structure, the position of the laser head can be adjusted at will, but also single head work, easy to operate
The latest software Asahi operating software, can control the power of the two laser heads, the two laser head cutting effect can be completely consistent
High power laser, and equipped with a full import of dual optical system, the maximum reduction of the loss of light, to ensure that the cutting depth of the same
The host is equipped with Samsung 128M memory, can save a plurality of processing documents
Laser type Domestic CO2 laser laser power 80W/100W/120W/130W/150W/170W(Matching)
Working area 1200*800mm Engraving speed 0-1500mm/s Cutting speed 0-800mm/s Repeat accuracy ±0.05mm Motion system CNC control system Cooling mode Forced water cooling and protection system working voltage 220±10% 50HZ Power 1250W working temperature 0℃-45℃ Working humidity 5%-95% control software Genuine sunylaser software Support format BMP,PLT,AI,DXF,DST Outline dimension 1750*1360*1150mm Weight 280KG

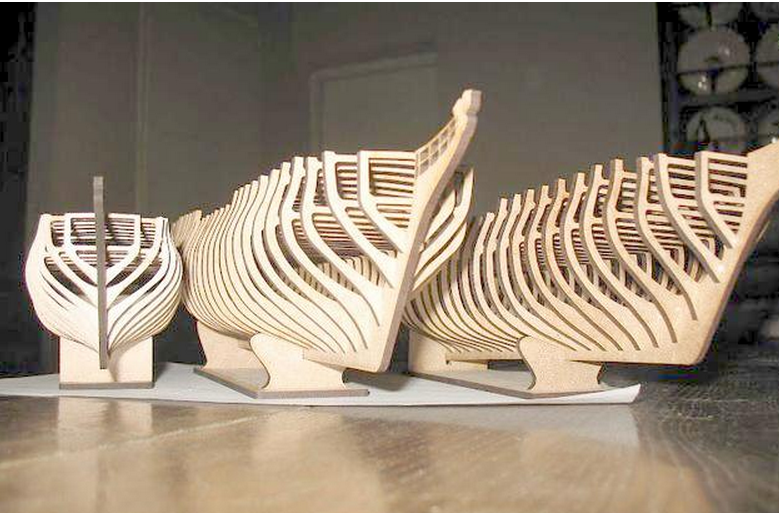

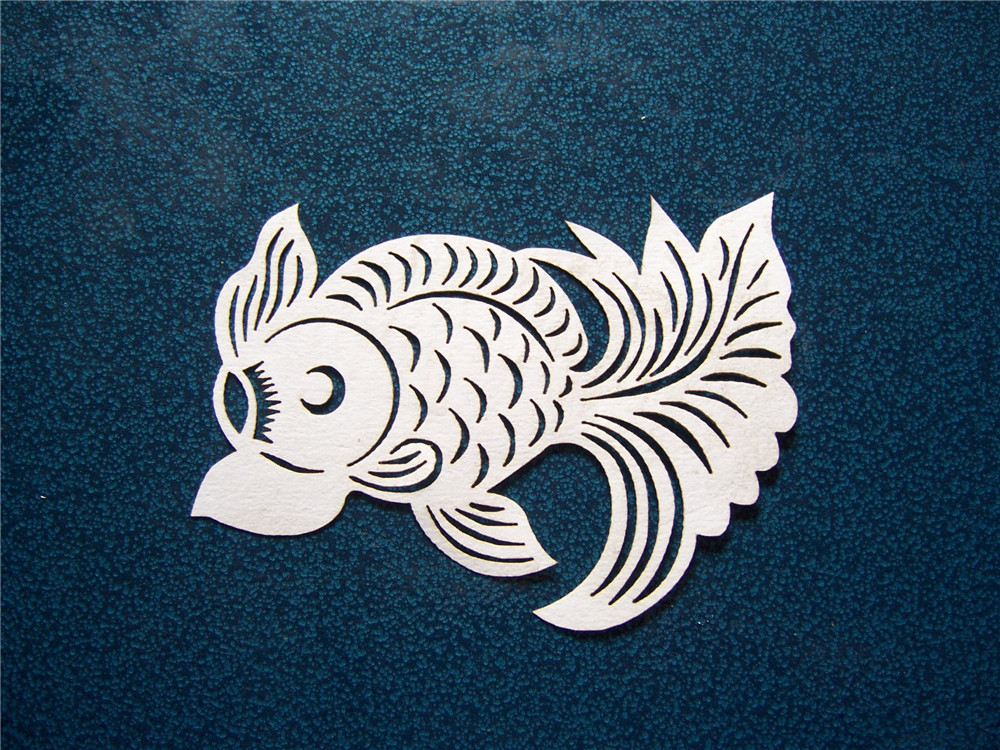

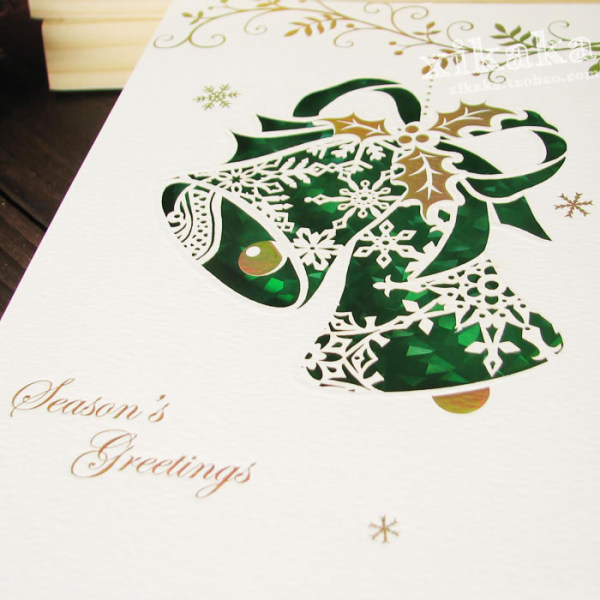

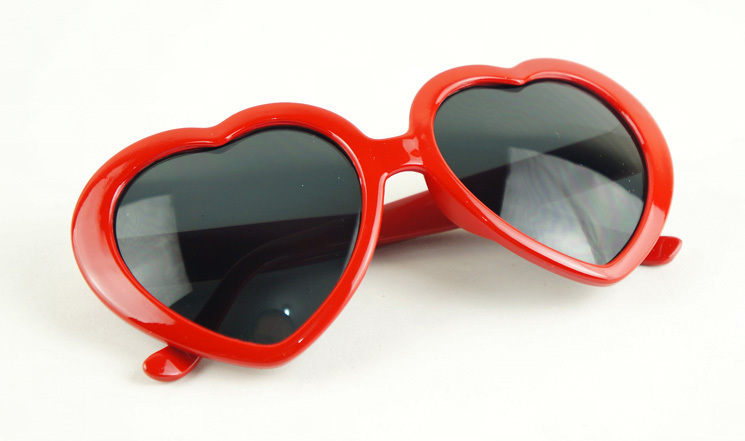

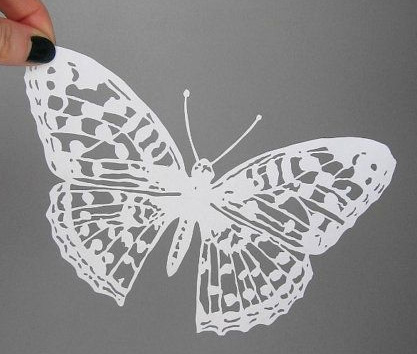

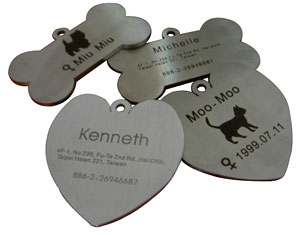

Suitable for wood, paper, leather, cloth, organic glass, epoxy resin, acrylic, wool, plastic, rubber, ceramic, crystal, jade, bamboo products, such as non metallic materials

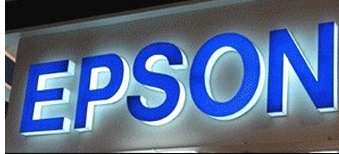

- Suitable for clothing, leather, cloth toys, computer embroidery cutting, electronic appliances, models, crafts, advertising, decoration, packaging, printing, paper products and other industries
