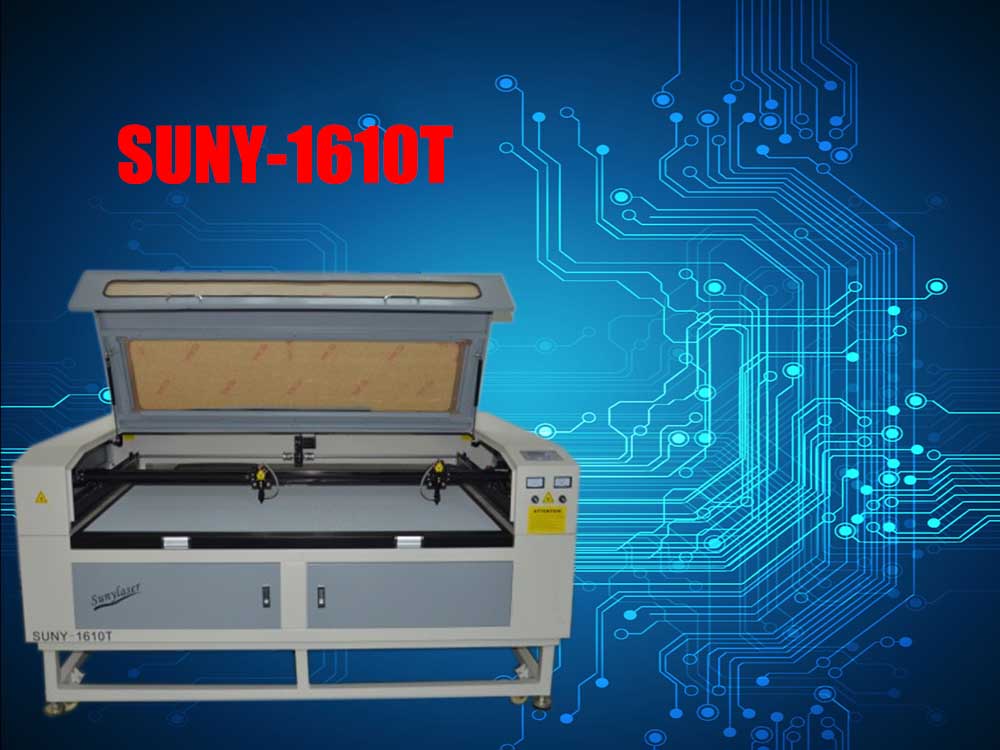

Suny-1610T double head laser cutting machine

2016-03-26

  • Introduction
  • Configure
  • Characteristic
  • Parameter
  • Material
  • Industry
  • Suny-1610T double head laser cutting machine for Xu Yang laser launched new models, the machine is equipped with at least two laser head, moving away from random, the machine is equipped with two sets of laser tube, laser power supply, equipped with imported linear guide rail, imports of stepper motor and driver, stainless Zhifeng Waterloo floor. The software uses the world's leading independent research and development control software, can realize double laser head power are adjusted to solve the, the previous power to be able to adjust the problem, this machine is widely used in leather clothing paste embroidered cloth and other industries.
  • A. germanyimported fully stepper motor and drive system
    B.SUNYLASER control system
    C. imported six balanced linear guide
    D. dual transmission of USB2.0
    E.. Yingde liquid crystal display, user-friendly button control panel
    F. domestic laser (80/100/120/130/150/170W) matching
    G. optical system uses all imported laser lens
    H. high strength stainless iron honeycomb plate
    The I. chassis integration structure
    J. support U disk to download data
  • 1 special mechanical structure, the position of the laser head can be adjusted at will, but also single head work, easy to operate
    2 the latest software of the operation software, which can control the power of the two laser heads, can make the two laser head cutting effect completely consistent
    3 high-power laser, and equipped with a fully imported dual optical system, the maximum reduction of the loss of light, to ensure that the cutting depth of the same
    4 host is equipped with Samsung 128M memory, can save a plurality of processing documents
  • Laser type Domestic CO2 laser
    laser power 80W/100W/120W/130W/150W/170W(Matching)
    Working area 1600*1000mm
    Engraving speed 0-1500mm/s
    Cutting speed 0-800mm/s
    Repeat accuracy ±0.05mm
    Motion system CNC control system
    Cooling mode Forced water cooling and protection system
    working voltage 220V±10%/50HZ
    working temperature 0℃-45℃
    Working humidity 5%-95%
    control software Genuine sunylaser software
    Support format BMP、PLT、AI、DXF、DST
    Outline dimension 2150*1260*1150mm
    Weight 320KG

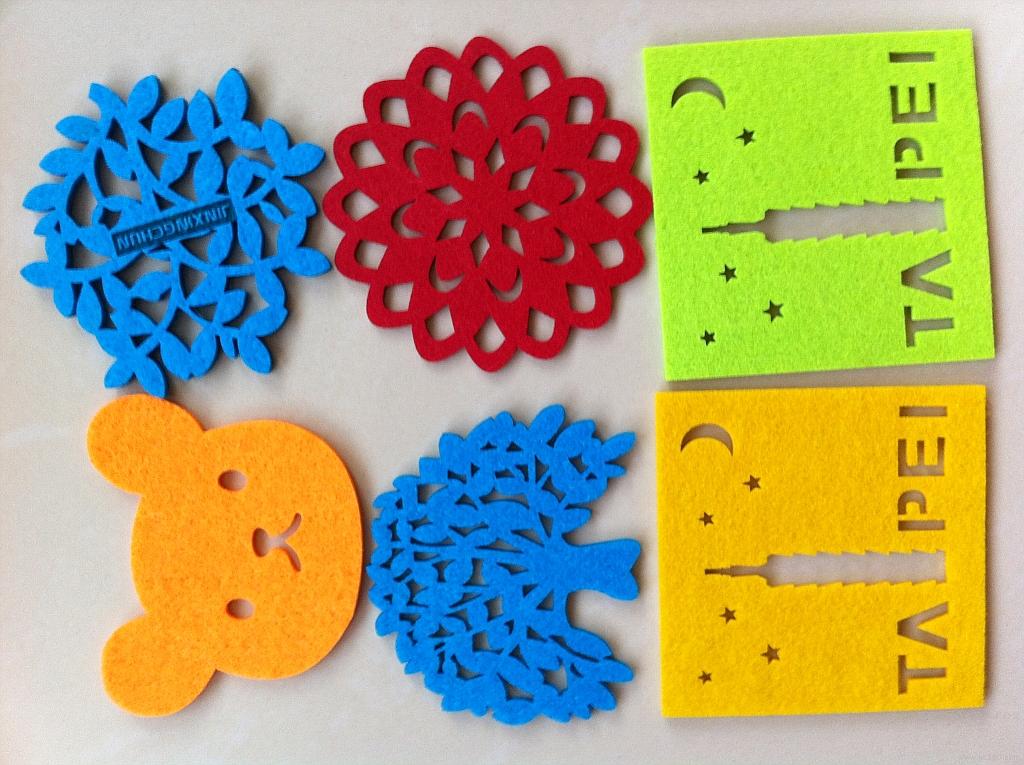

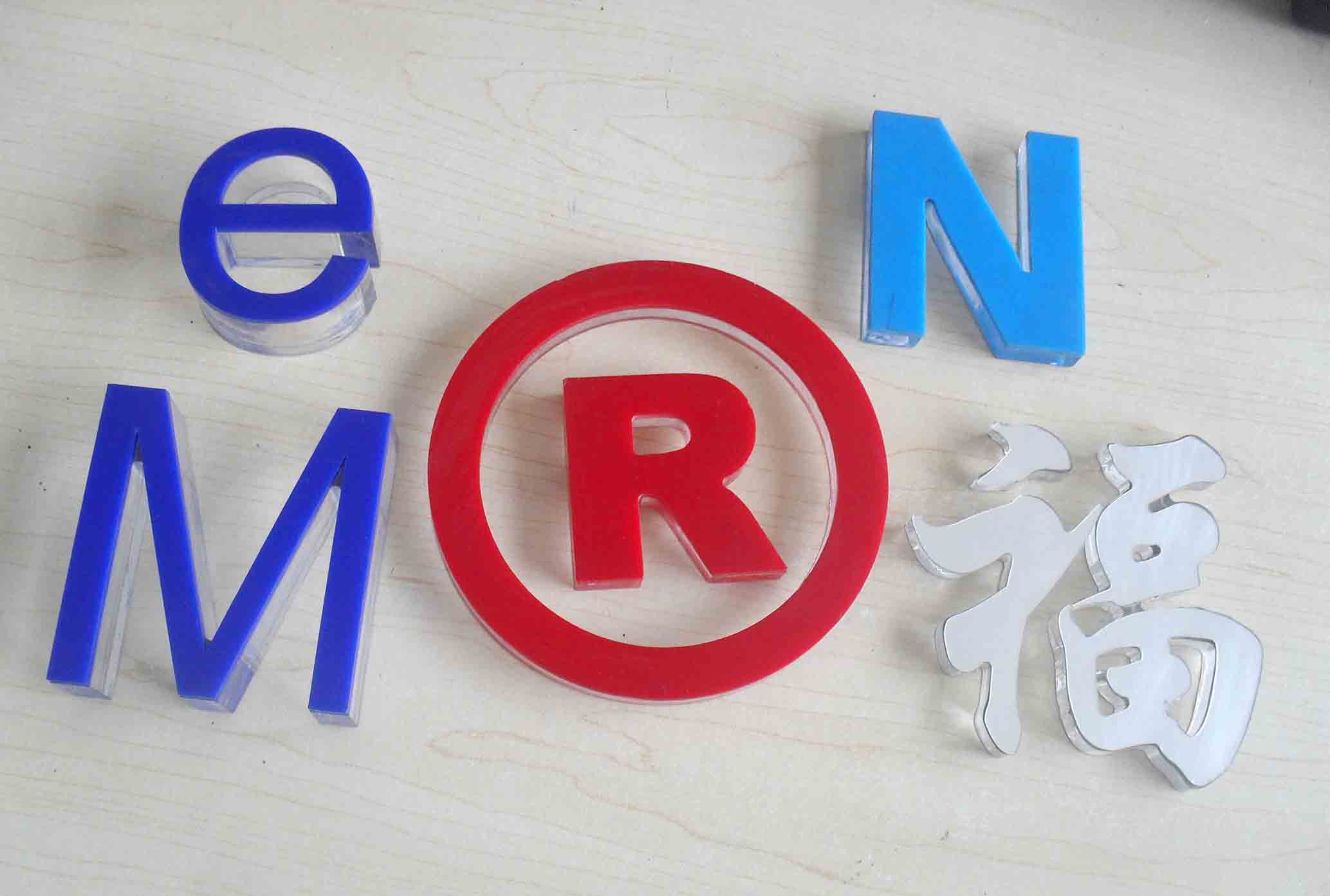

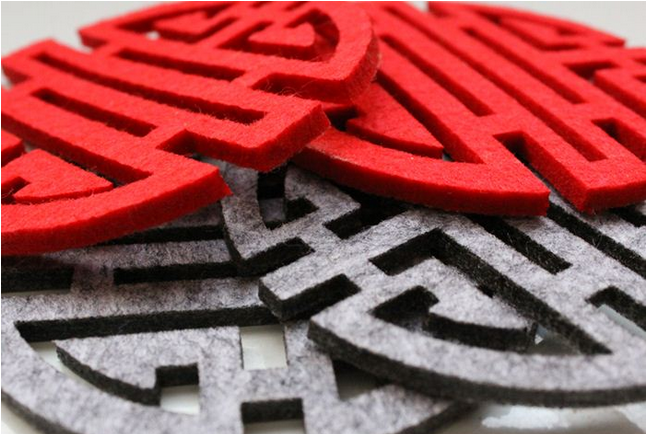

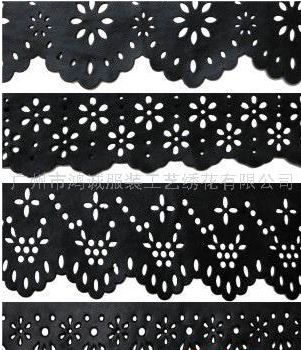

  • Suitable for wood, paper, leather, cloth, organic glass, epoxy resin, acrylic, wool, plastic, rubber, ceramic, crystal, jade, bamboo products, such as non metal materials.















  • This machine is suitable for leather garment, cloth toys, computer embroidery and clipping, electronic and electrical appliances, clothing the drilling template, model, arts and crafts, advertisement decoration, printing and packaging, paper products, such as industry.
