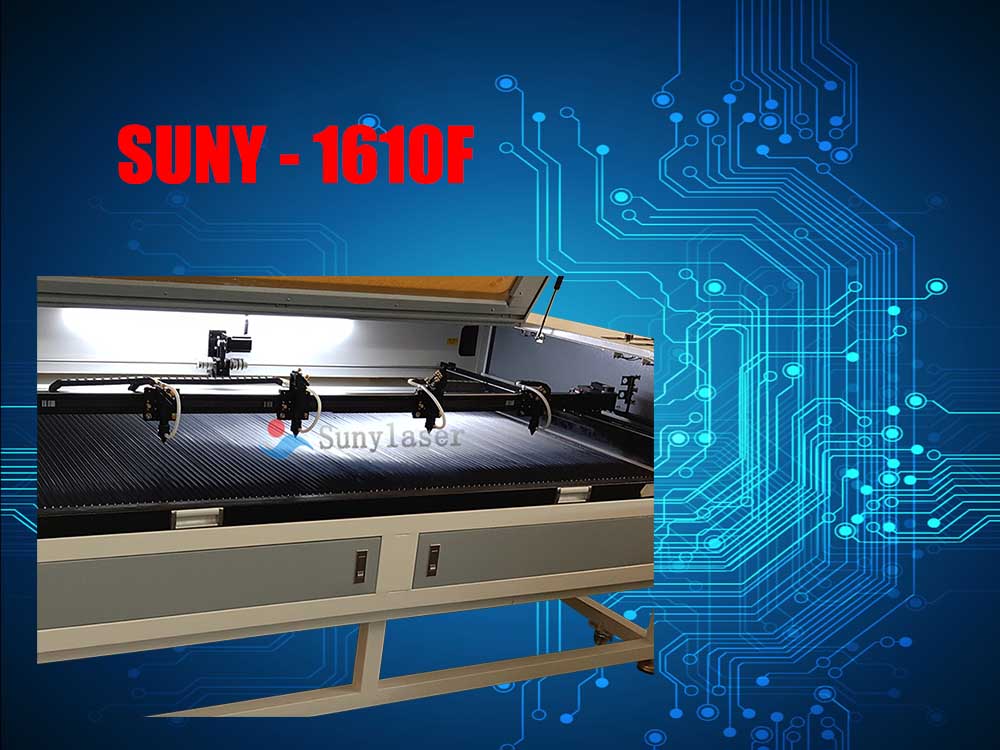

Suny-1610F four laser cutting machine
2016-03-25
- Introduction
- Configure
- Characteristic
- Parameter
- Material
- Industry
- Suny-1610F laser cutting machine is a specialized crop industries for the design of the laser cutting machine, there are two main features of high speed and precision of the. Machine uses the X axis and Y axis subdivision step into the system, equipped with three imported linear guide rail, imported three-phase stepper motor, stainless steel honeycomb floor platform and Singapore optical path system, in circuit control system using DSP control technology, high efficiency and stability of the switching power supply, USB data transmission, the machine more stable, faster, higher precision, widely used in leather clothing, cloth toys, computer embroidery and clipping, electronic and electrical appliances, clothing the drilling template, model, arts and crafts, advertisement decoration, printing and packaging, paper products industry.
- A. the United States imported stepper motor and drive system
B.SUNYLASER control system
C. uses the foreign import six balanced linear guide rail
D. dual transmission mode for the USB2.0 port
Devin E. English LCD, Humanity button control panel

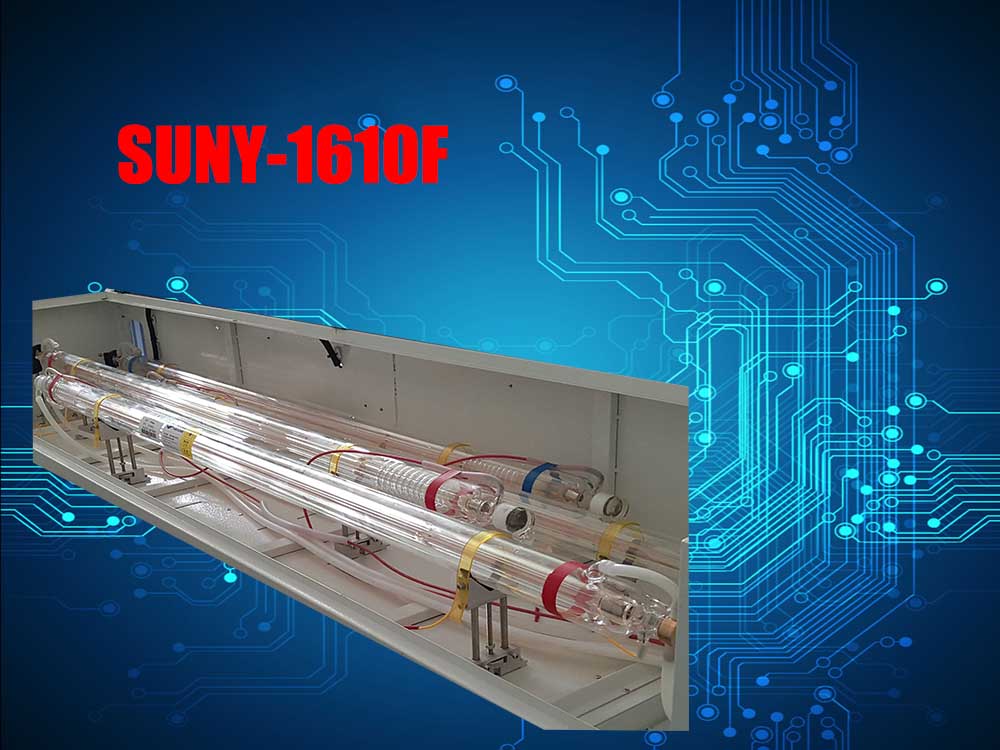

F. laser made (80/100/120/130/150/170W) matching
G. optical system uses laser Singapore imports all lenses
H. high strength stainless iron honeycomb plate
The I. chassis integration structure
J. support U disk to download data
- 1 cutting path optimization, to provide users with a variety of ways to optimize the path.
2 when the output has a "walk" function, to find a convenient location.
3 support array output, and automatic full of working table.
4 can simulate the output display output effect.
5 any definition of the origin location, convenient processing.
6 data graphics processing speed, more than 15M of data can be processed immediately after the completion of.
7 high speed cutting and engraving process, laser processing intensity of the same, to ensure the consistency of the processing depth.
8 engraving machine configuration 64M above large capacity memory, at the same time to store more than one operating data, to achieve automatic operation from the computer.
9 shut down the file is not lost, easy to achieve bulk operations.
10 engraving speed can reach 1500mm/s, curve cutting speed can reach 500mm/s, engraving accuracy can reach 0.1mm.
Laser type Domestic CO2 laser laser power 80/100/120/130/150/170W(Matching) Working area 1400*800mm Engraving speed 0-1500mm/s Cutting speed 0-800mm/s Repeat accuracy ±0.05mm Motion system CNC control system Cooling mode Forced water cooling and protection system working voltage 220V±10%/50HZ Power 1250W working temperature 0℃-45℃ Working humidity 5%-95% control software Genuine sunylaser software Support format BMP、PLT、AI、DXF、DST Weight 230KG

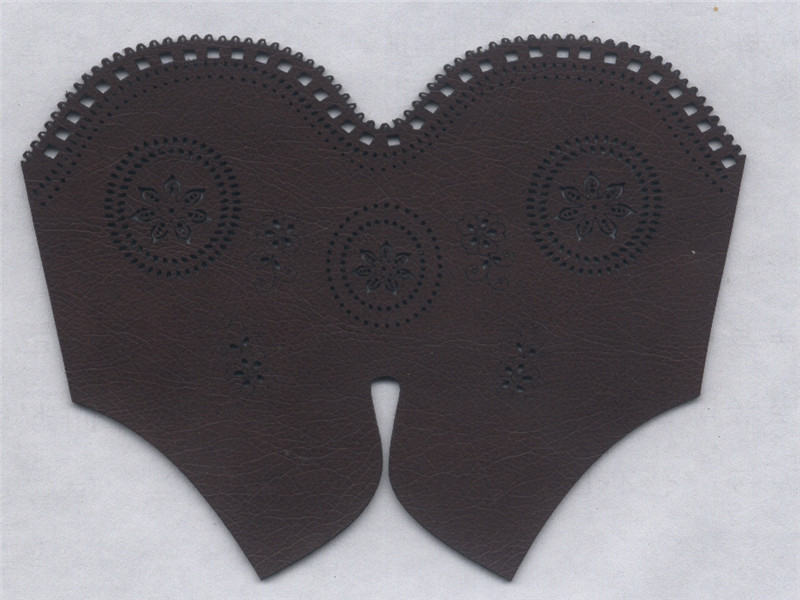

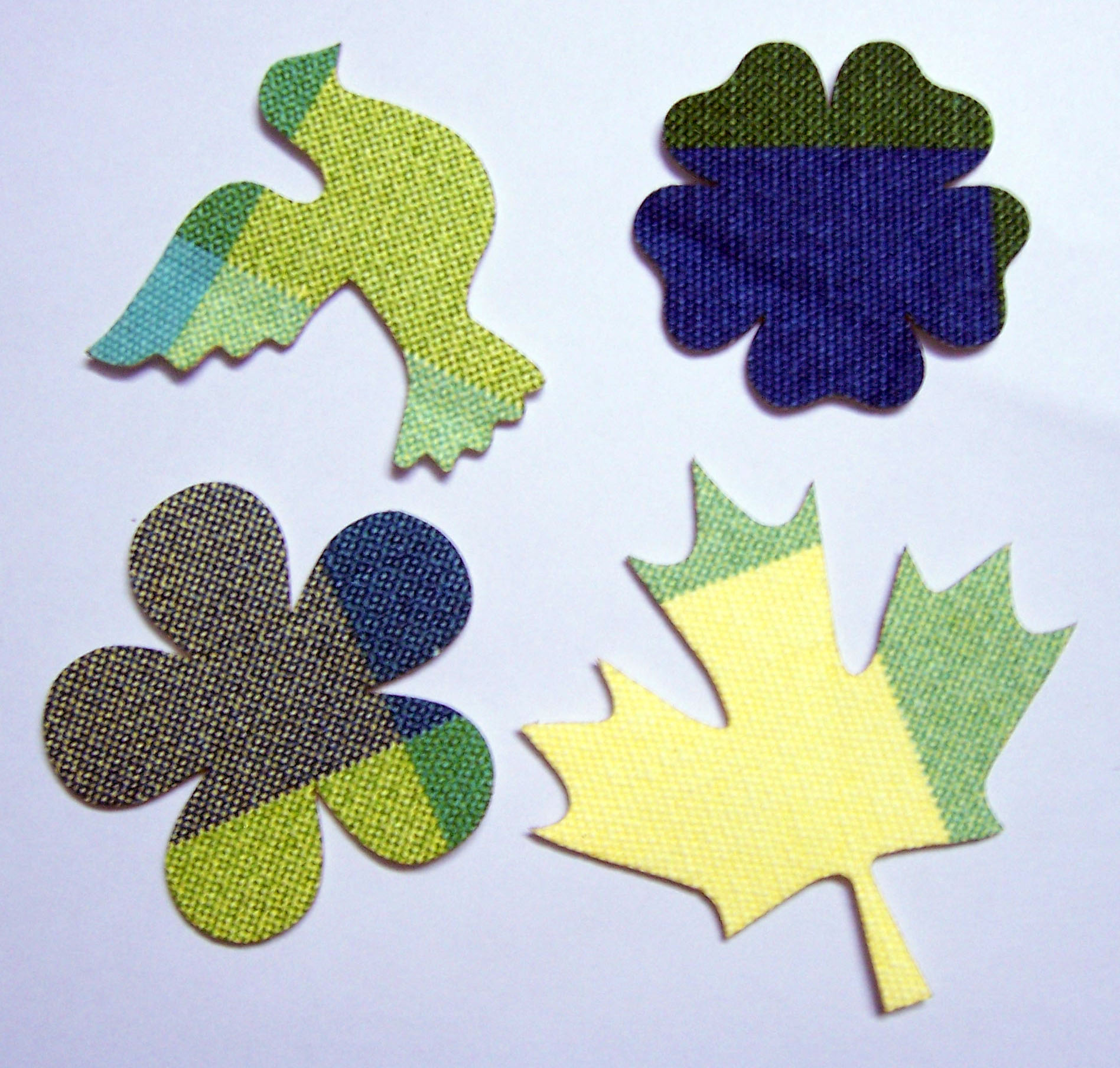

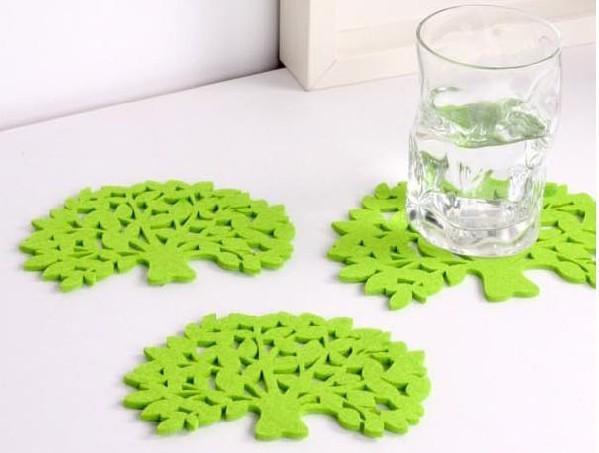

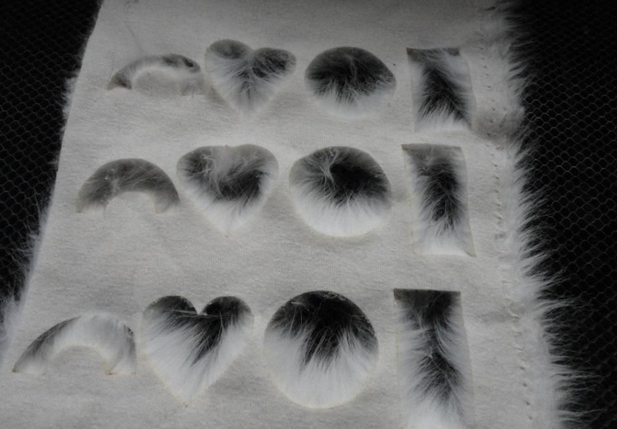

Suitable for wood, paper, leather, cloth, organic glass, epoxy resin, acrylic, wool, plastic, rubber, ceramic, crystal, jade, bamboo products, such as non metal materials.
- This machine is suitable for leather garment, cloth toys, computer embroidery and clipping, electronic and electrical appliances, clothing the drilling template, model, arts and crafts, advertisement decoration, printing and packaging, paper products, such as industry.
