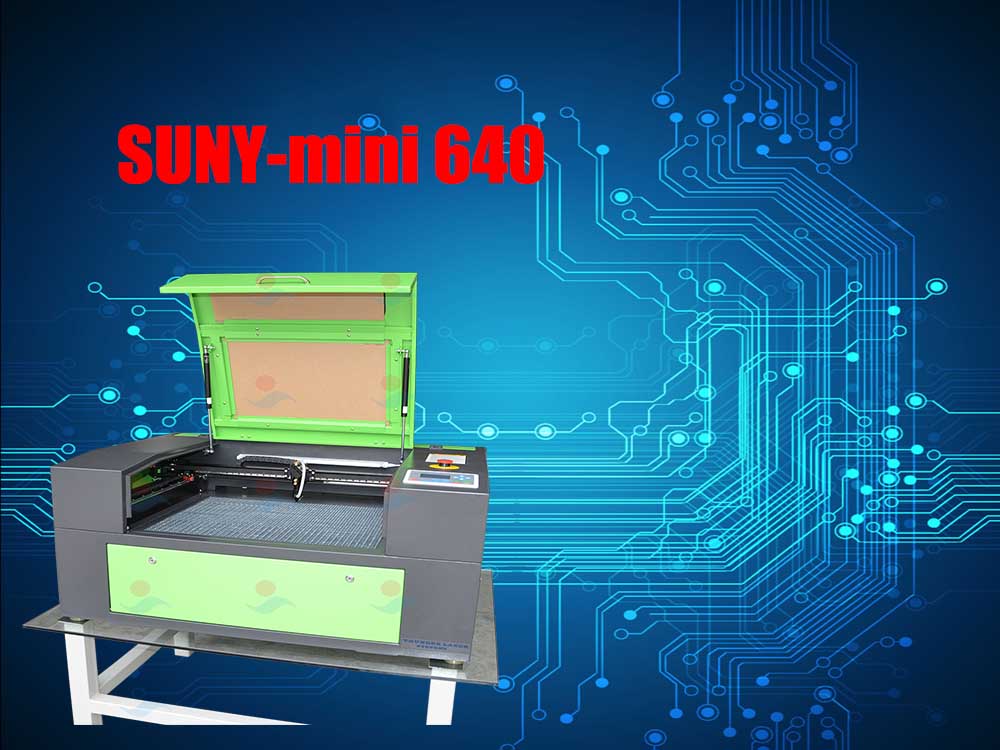

MINI640 laser engraving machine

2016-03-23

  • Introduction
  • Configure
  • Characteristic
  • Parameter
  • Material
  • Industry

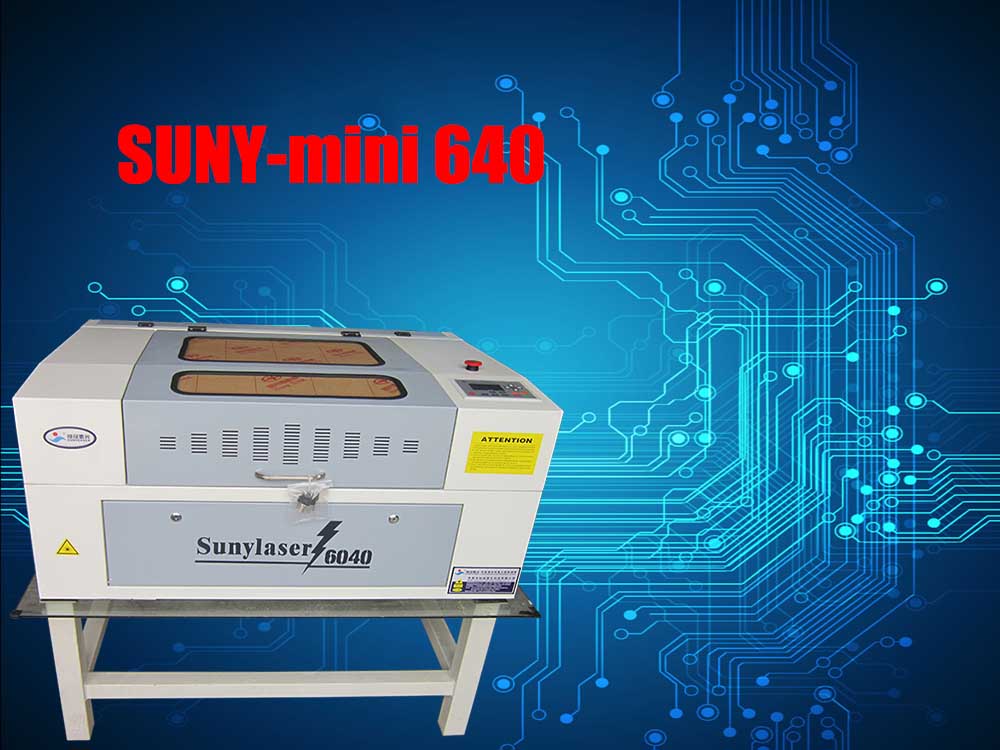

  • SUNY-MINI6040 laser engraving machine is one portable mini model with multifunction and high-configuration which is developed for European and American market, this model use imported linear guideway, with auto up and down worktable, ball screw, high-accuracy operation, and have red dot pointer, auto focus, rotary devices etc, meet the customers’ needs on the high-performance laser engraving machine.
  • A. germanyimported fully stepper motor and drive system
    B. SUNYLASER control system
    C. adopts imported linear guide
    D. dual transmission: Industrial serial port or USB port
    E. Chinese liquid crystal display, user-friendly button control panel
    F. domestic laser 50W
    G. optical system uses all imported laser lens

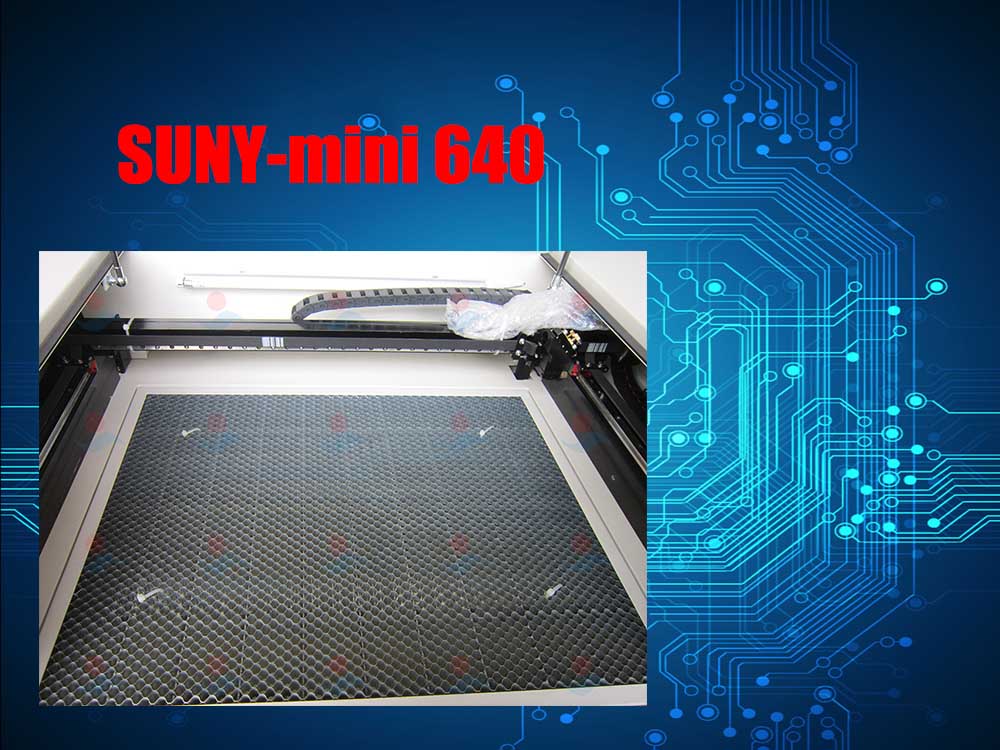

    H. high strength stainless iron honeycomb plate
    The I. chassis integration structure
    J. support U disk to download data
  • 1. imported square linear guide, life can reach more than 20 years
    2. Optical lens using high strength Gold silicon and aspheric focusing lens such that the lens resistant paint, high temperature resistant, does not need to be replaced frequently, greatly reducing the use cost, non spherical lens focusing small diameter, better cutting effect
    3. towline imported from Germany
    4. all the optical frame has a simple structure, convenient adjustment, easy maintenance of lens
    5 using DSP motion control system, running smoothly. Modular unified design, installation, anti-interference ability, easy to repair and replacement parts
    6. emergency stop switch. You can quickly turn off the power supply
    7. filter to improve the anti-interference performance of the machine
    8. DC switching power supply
    9. universal wheel base rubber is used to facilitate the adjustment and stability of the machine
    10. install the U.S. import chip driver
    11. unique "side blowing" system to effectively protect the laser head, so that the maintenance of the laser head is more convenient
    12. mechanical structure optimization design, the overall shape of the smallest size, not only to save your valuable space, but also the structure of the deformation of high precision engraving
    13. direction before and after the whole material can be Banfang, without cutting
    14. through CE, FDA certification
    Graphic format: BMP, PLT, DXF, DST, AI
    High speed cutting function:
    Red light positioning: optional
    Offline output functions:
    Layered output functions:
    Air cooling functions:
    Before and after the material function:
    Foot switch function: optional
    Ultra quiet fan: optional
    The oil-water separation type air compressor: optional
    Intelligent water machine: optional
    Engraving and cutting path optimization, to provide a variety of route optimization methods for users.
    Output "frame away" function, easy to find the discharge position.
    Support array output, and automatically covered table.
    Analog output can display the output effect.
    Origin arbitrary definition of location, convenient processing.
    Big data graphics processing speed.
    15M more instantaneous data can be disposed of.
    Cutting carving process, the same intensity laser processing, ensure the machining depth is consistent.
    Machine configuration 64M over large capacity memory, while a number of operational data storage, to achieve from the computer automatically.
    Shutdown lost documents, easy batch work.
    Engraving speed can reach 1500mm/s, curve cutting speed can reach 500mm/s, the engraving precision can reach 0.1mm.
  • Laser type Sealed off CO2 laser
    laser power 50W
    Working area 600*400mm
    Engraving speed 0-1500mm/s
    Cutting speed 0-800mm/s
    Repeat accuracy ±0.05mm
    Motion system CNC control system
    Cooling mode Forced water cooling and protection system
    working voltage 110/220±10% 50/60HZ
    Power <1300w
    working temperature 0℃-45℃
    Working humidity 5%-95%
    control software Genuine sunylaser software
    Support format BMP,PLT,AI,DXF,DST,JPG,CDR,HPGL
    Compatible software Auto CAD,CoreIDraw
    Machine size 1070*770*520mm
    Packing size 1250*920*610mm
    Weight 110KG
    packing Wooden box

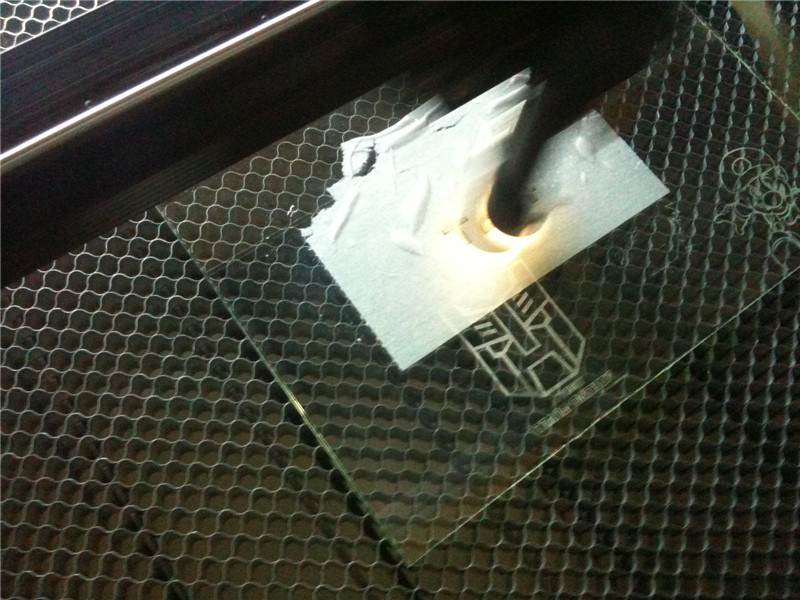

  • Suitable for wood, paper, leather, cloth, organic glass, epoxy resin, acrylic, wool, plastic, rubber, ceramic, crystal, jade, bamboo products, such as non metal materials.

























  • Suitable for leather garment, shoe cap, cloth toys, computer embroidery and clipping, electronic and electrical appliances, model, arts and crafts, advertisement decoration, printing and packaging, paper products, such as industry
