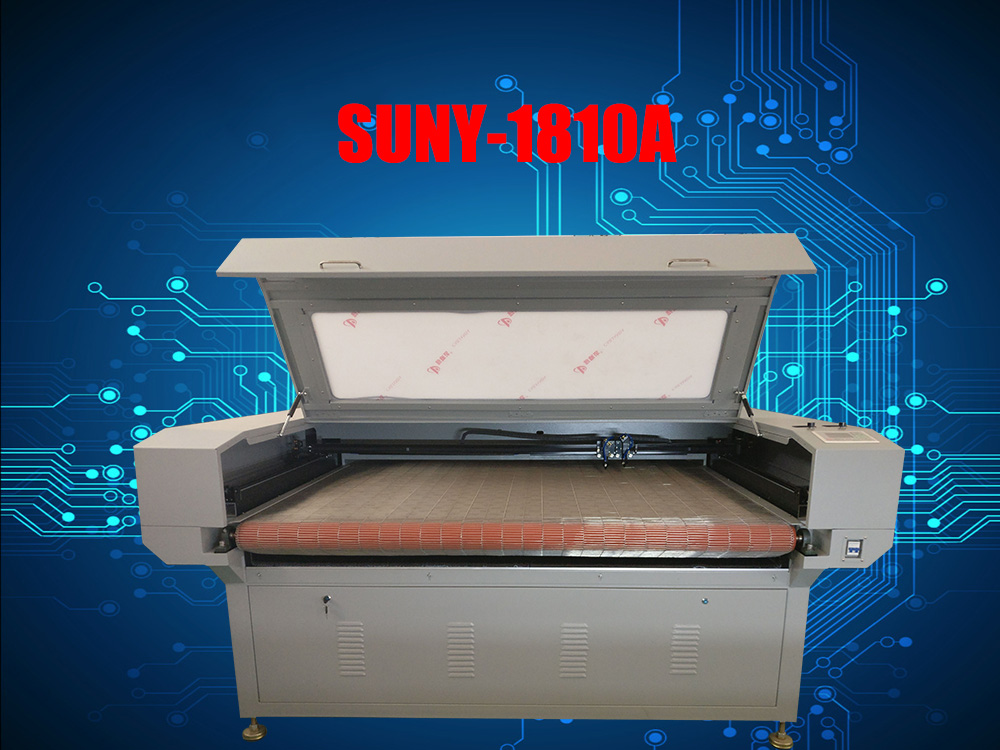

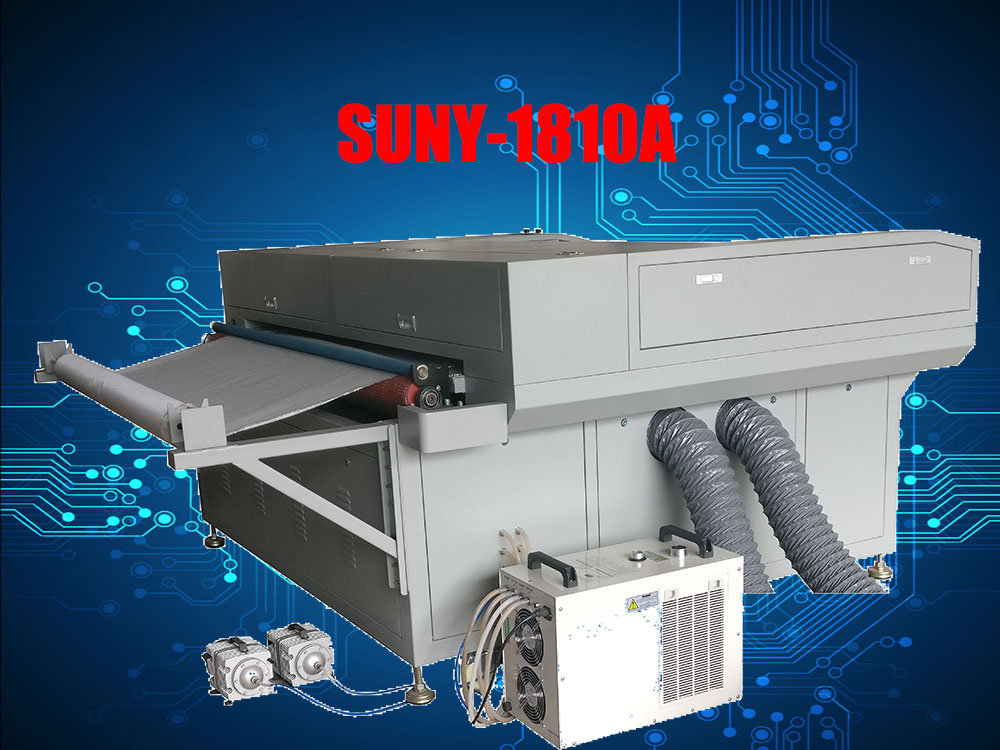

2016 newest auto feeding laser cutting machine


  • Introduction
  • Configure
  • Characteristic
  • Parameter
  • Material
  • Industry
  • SUNY-T series laser machine is one new model of SUNYLASER, equipped with at least 2 laser heads, Moving away from random, complete machine with two laser tubes, two laser power supply, imported linear guideway, imported stepper motor and driver, stainless honeycomb worktable, use world-leading self-developed control software, can adjust the power of each head separately, resolve the problems of can’t be adjusted in the past, this series are widely used in clothing leathers, embroidered cloths.
  • A. the United States imported stepper motor and drive system
    B.SUNYLASER control system
    C. uses the foreign import six balanced linear guide rail
    D. dual transmission mode for the USB2.0 port
    E. Yingde liquid crystal display, user-friendly button control panel
    F. domestic laser (80/100/120/130/150/170W) matching
    G. optical system uses all imported laser lens
    H. high strength stainless steel honeycomb base plate
    I. chassis integration structure
    J. supports U disk download data
  • 1 imported square linear guide, life can reach more than 20 years
    2. Optical lens using high strength Gold silicon and aspheric focusing lens such that the lens resistant paint, high temperature resistant, does not need to be replaced frequently, greatly reducing the use cost, non spherical lens focusing small diameter, better cutting effect < br / > 3 towline imported from Germany
    4 all the optical frame has a simple structure, convenient adjustment, easy maintenance of
    lens 5 using DSP motion control system, running smoothly. Modular unified design, installation, anti-interference ability, easy to repair and replacement parts
    6 emergency stop switch. You can quickly turn off the power supply
    7 filter to improve the anti-interference performance of the machine
    8 DC switching power supply
    9 using the universal wheel for adjustment of the machine stable
    primer 10 the United States imported chip
    driver installation Effectively protect the laser head 11 unique "quench" system, make the maintenance more convenient
    laser head 12 mechanical structure optimization design, the minimum size of machine, not only save your valuable space, and the structure deformation engraving precision
    13 direction before and after the whole material can be Banfang, without cutting
    14 through CE, FDA certification
    Graphic format: BMP, PLT, DXF, DST, AI
    High speed cutting function:
    The red light positioning function: you can select
    Offline output functions:
    Layered output functions:
    Air cooling functions:
    Before and after the material function:
    Foot switch function: optional
  • Control system DSP control system
    Memory 64MB buffer memory
    Interface USB (support 2K windows, XP, vista, Windows 7)
    Working platform Cellular platform
    Working area 1800*1000mm
    laser power 80W
    Laser type Sealed CO2 glass tube laser
    Life time of laser tube 2500 hours
    driving system Stepper motor
    Cooling mode water-cooling
    working temperature 32 ° - 113 ° F(0 ° - 45 ° C)
    Working humidity 8%-95%
    Maximum speed 400mm/s
    resolving power 500DPI (standard type), maximum 1000DPI (enhanced)
    Compatible software CoreDraw X2 thru X4, AutoCAD
    Support graphics format Support JPG, BMP, DXF, AI, CDR, HPGL, PLT, DST, etc.
    Power requirements AC220V(or110V)± 10%50/60HZ
    Power <2,000 W
    Outline dimension 2350*1560*1150(mm)
    Weight 400KG
  • Applicable to garment leather, cloth toys, clothing the drilling template, arts and crafts, advertisement decoration, printing and packaging, paper products, such as industry
