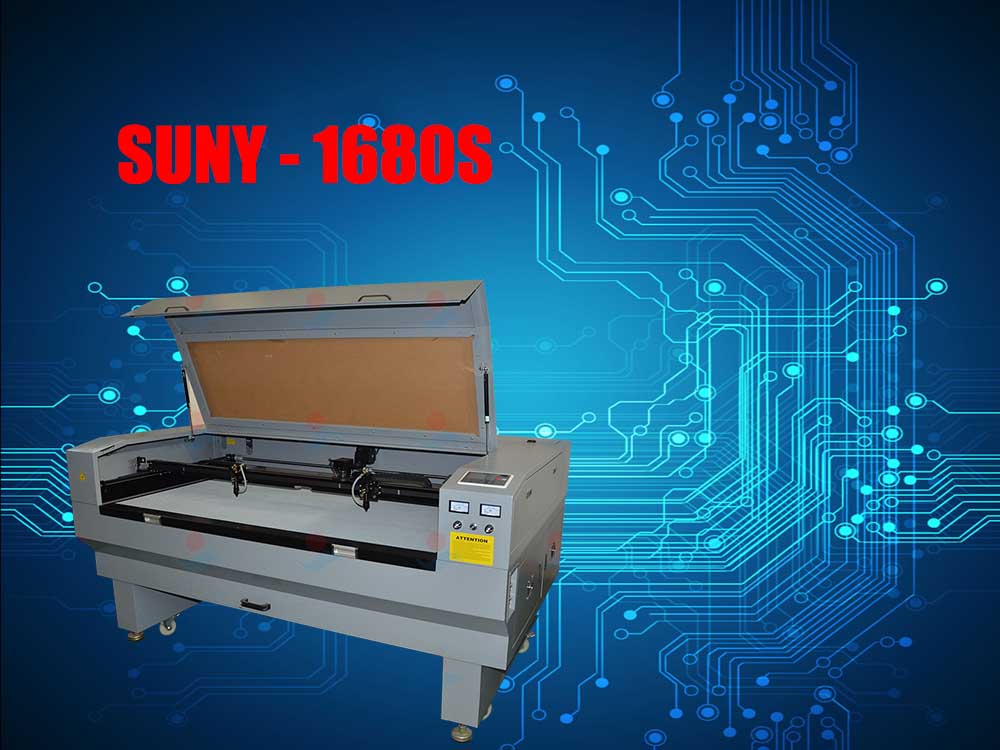

Suny-1680S camera cutting machine

2016-04-16

  • Introduction
  • Configure
  • Characteristic
  • Parameter
  • Material
  • Industry

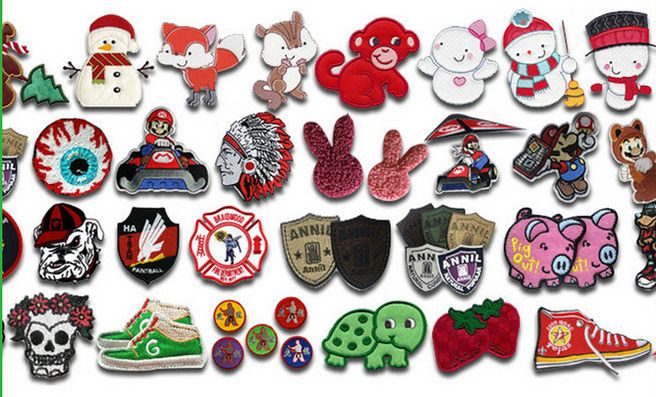

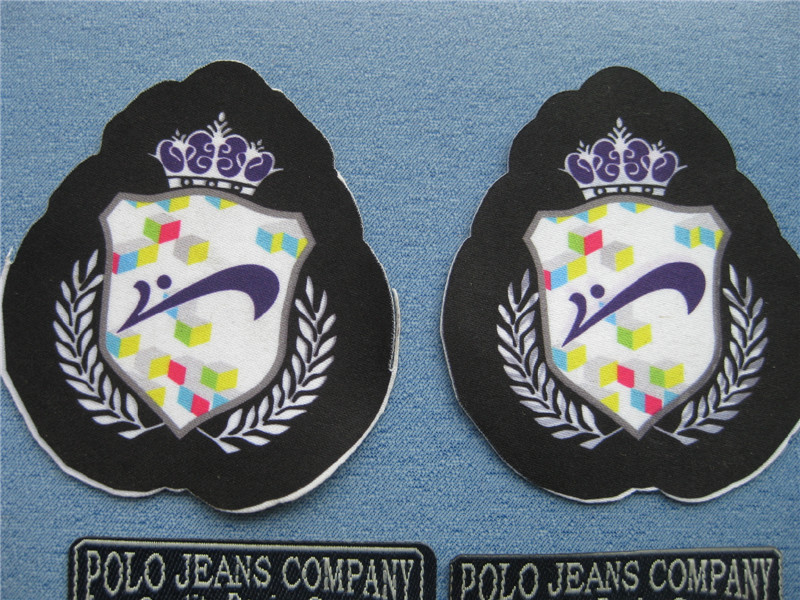

  • SUNYLASER applies ourselves to new products’innovation and development, SUNY-S series laser cutting machine is one fully auto intelligent model, it with 3.2 million pixels CCD camera, can take photos of cutting objects’ contour, thus cutting the edges automatically. It is widely used in trademark industry, with the clothing industry’s development to individuation, alien trademarks are more and more demanded, previously traditional cutting techniques can’t meet requirements, however, SUNYLASER fully auto camera positioning cutting machine is perfect cutting expert of alien trademarks, high configuration, stable performance, superbly fast speed.

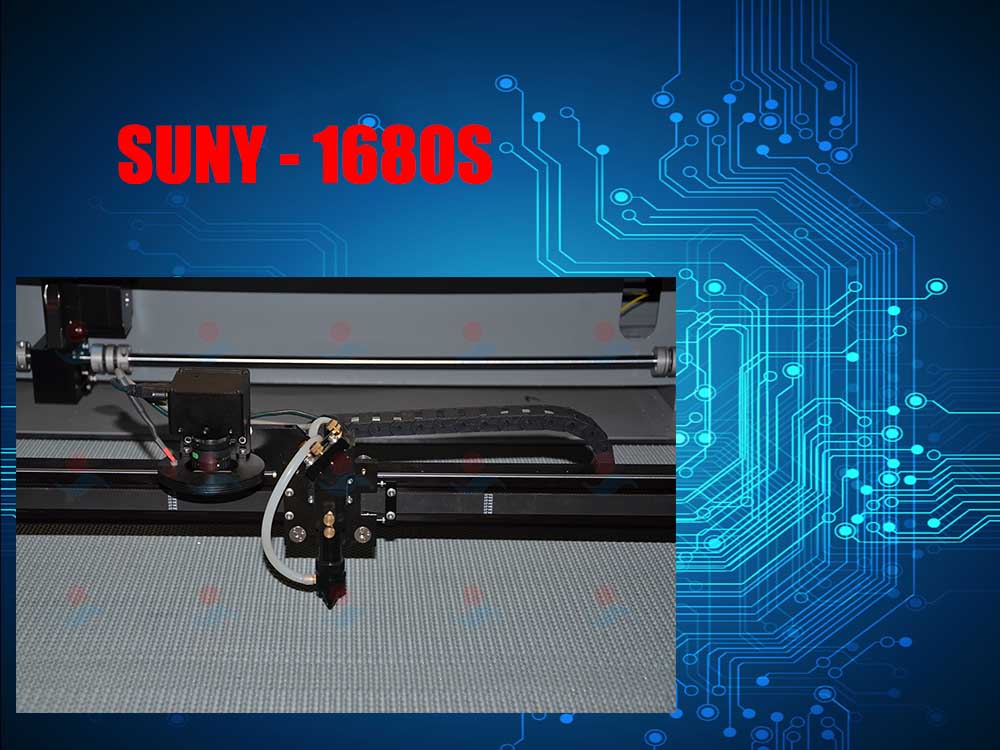

  • A.320 mega pixel high-resolution CCD camera, can accurately identify the edge of
    B.DSP control system, stable performance
    C.128M large capacity memory, parsing faster
    D. Germany imported stepper motor
    E. South Korea imported six balanced linear guide
    F.USB2.0 data transmission interface
    G. Chinese LCD display, user-friendly control panel
    H. domestic 80/100/120/130/150/170W laser
    (optional) I. stainless steel high strength honeycomb floor platform
    J.SUNYLASER software
    K.U disk storage
  • 1. In camera visual positioning system and computer software to work together, the S series cutting machine can the cloth seats tensile deformation for the entire automatic tracking compensation to ensure that accurate cutting. Of course, the user can sit back and relax.
    2. For curly or longer label products full automatic material, material feeding system, can greatly facilitate the use of the user, a substantial increase in production efficiency.
    3 for under configuration of imported high performance AC servo motor, cutting machine can make S system more stable operation, higher accuracy, faster.
    4. The time is effective, the shortest cut path of software design is s series automatic camera positioning cutting machine everywhere for the sake of users of a bright spot, and the software design of the shortest path compared, saving an average of 10-20% of the working time, equal to increase the benefit of 10-20%.
    5. Camera positioning system, marking the harmony and unity of the laser technology, automation technology, artificial vision technology can only, users are bound to increase production and processing capacity to obtain sustained positive production efficiency to provide effective help.
    6.S series automatic camera positioning cutting machine at work through the visual system pattern intake computers, through treatment, can automatically search and locate the workpiece cutting and avoid the user because of inaccurate positioning and struggling to cope.
    To realize the fast 7. Continuous curve cutting function is due to the high-end DSP technology and powerful data processing ability, computer software for design and with meticulous precision mechanical system, under high-speed operation, cutting straight without deformation, not cutting curve distortion.
  • Laser type Domestic CO2 laser
    laser power 80/100/120/130/150/170W(Matching)
    Working area 1600*800mm
    Engraving speed 0-1500mm/s
    Cutting speed 0-800mm/s
    Repeat accuracy ±0.05mm
    Motion system CNC control system
    Cooling mode Forced water cooling and protection system
    working voltage 220±10% 50HZ
    Power 1250W
    working temperature 0℃-45℃
    Working humidity 5%-95%
    control software Genuine sunylaser software
    Support format BMP,PLT,AI,DXF,DST
    Outline dimension 2150*1460*1150mm
    Weight 320KG

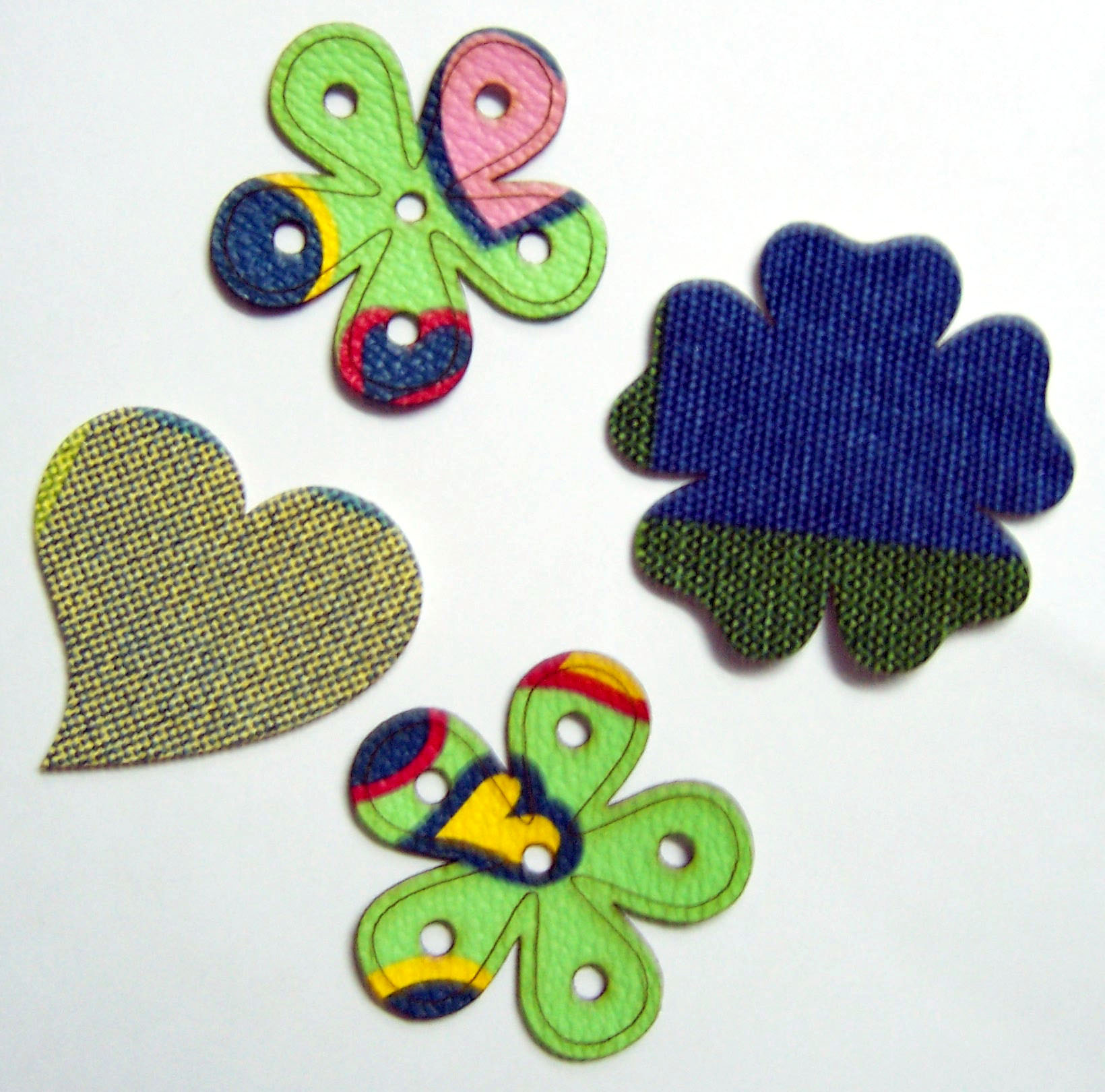

  • This product is suitable for wood, paper, leather, cloth, organic glass, epoxy resin, acrylic, wool, plastic, rubber, ceramic, crystal, jade, bamboo products, such as non metal materials.














  • This machine is suitable for leather garment, cloth toys, computer embroidery and clipping, electronic and electrical appliances, clothing the drilling template, model, arts and crafts, advertisement decoration, printing and packaging, paper products, such as industry.
