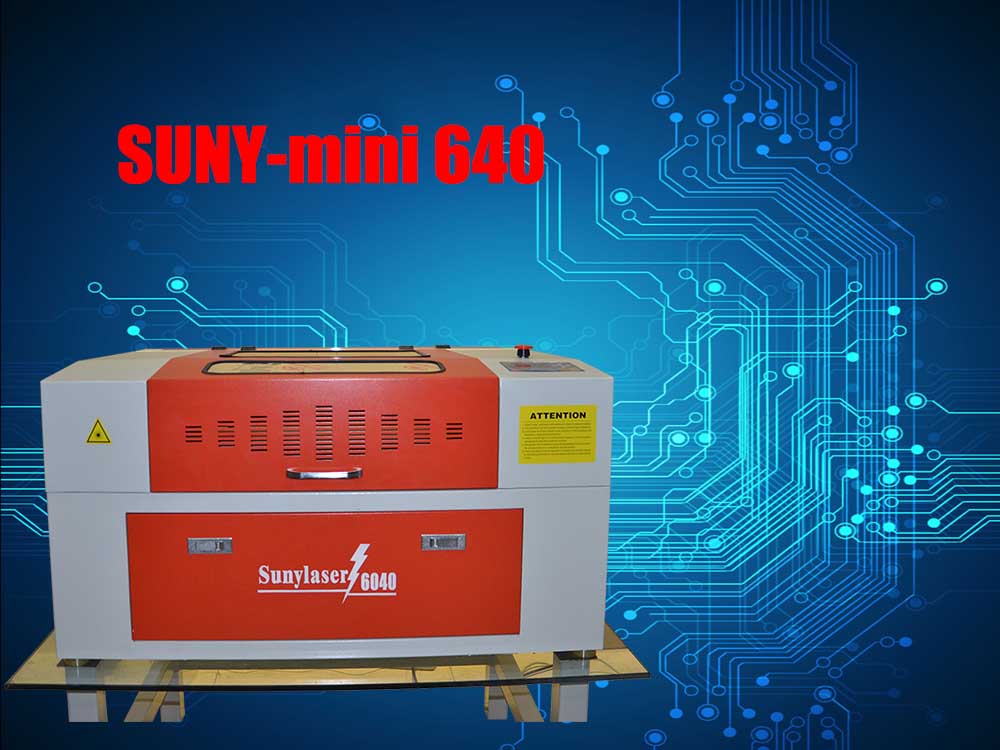

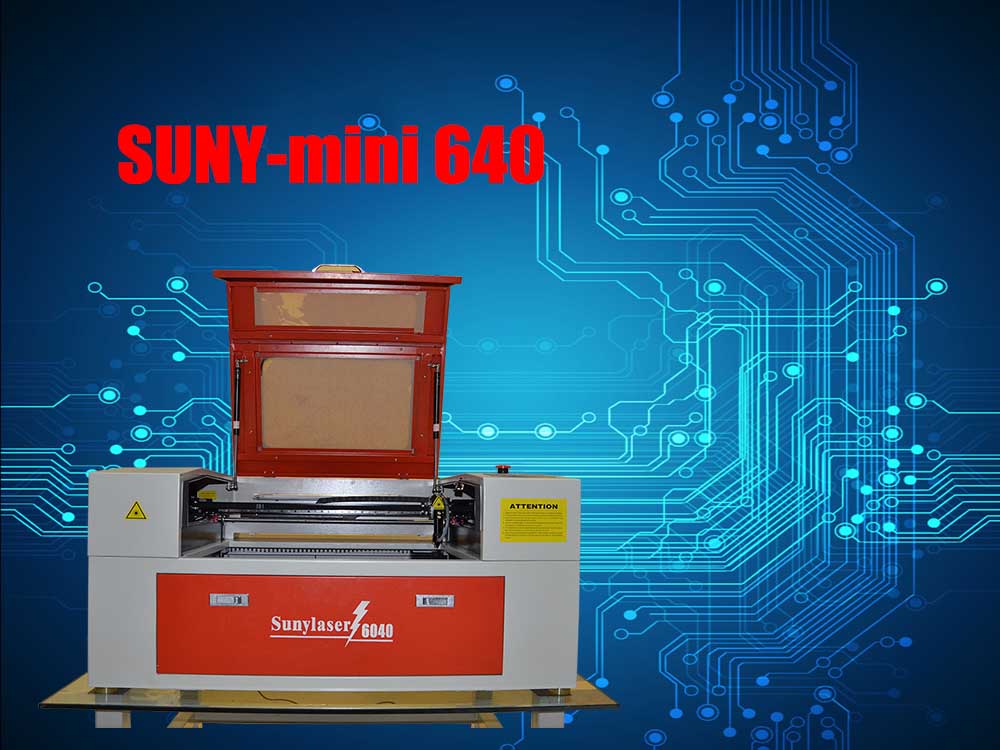

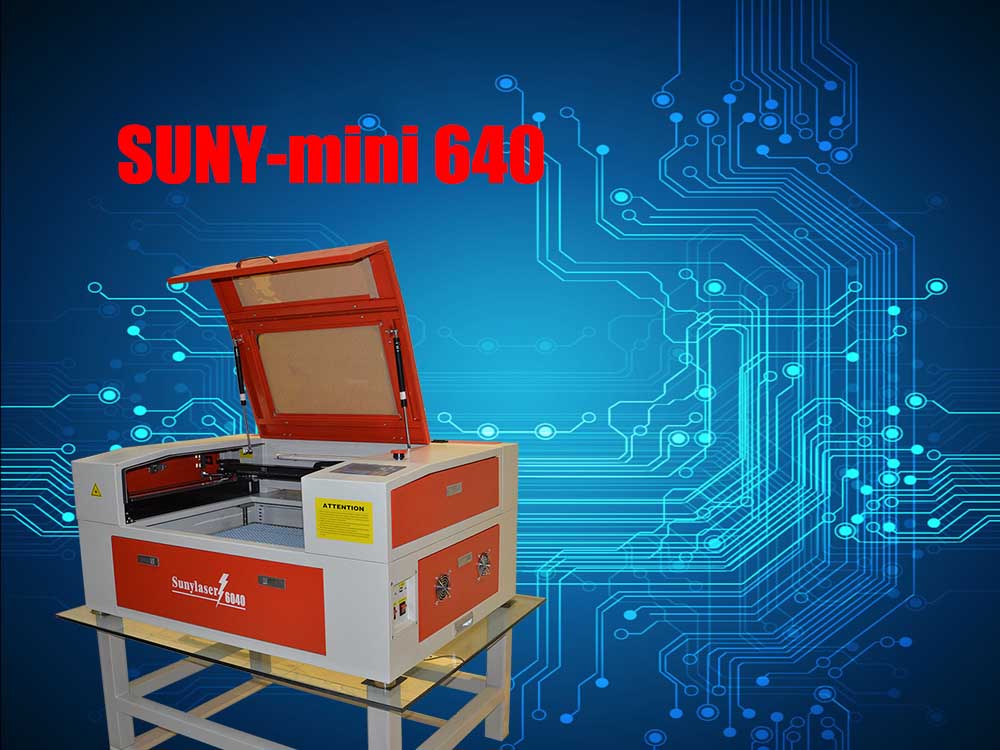

Suny-Automatic lifting 640 laser cutting machine

2016-03-31

  • Introduction
  • Configure
  • Characteristic
  • Parameter
  • Material
  • Industry
  • Automatic lifting MINI640 laser cutting machine is Xu Yang laser for customers in Europe and America developed a multifunctional high configuration of portable laser cutting machine, the laser cutting machine adopts imported linear guide rail, automatic lifting platform, ball screw, running very high accuracy, and is equipped with red light positioning, auto focus, rotary fixture function to meet the customers of laser cutting machine with high performance need.
  • A. the United States imported stepper motor and drive system
    B.SUNYLASER control system
    C. import six balanced linear guide rail
    D. double transmission USB2.0
    E. liquid crystal display, user-friendly button panel
    F. domestic laser (50W)
    G. optical system using Singapore imported lens
    H. high strength stainless steel honeycomb integrated floor
    I. chassis integration structure
    J. supports U disk download data
  • 1 imported square linear guide, life can reach more than 20 years
    2. Optical lens using high strength Gold silicon and aspheric focusing lens such that the lens resistant paint, high temperature resistant, does not need to be replaced frequently, greatly reducing the use cost, non spherical lens focusing small diameter, better cutting effect < br / > 3 towline imported from Germany
    4 all the optical frame has a simple structure, convenient adjustment, easy maintenance of
    lens 5 using DSP motion control system, running smoothly. Modular unified design, installation, anti-interference ability, easy to repair and replacement parts
    6 emergency stop switch. You can quickly turn off the power supply
    7 filter to improve the anti-interference performance of the machine
    8 DC switching power supply
    9 universal wheel base rubber is used to facilitate the adjustment and stability of the machine
    10 install the U.S. import chip driver
    11 unique "side blowing" system to effectively protect the laser head, so that the maintenance of the laser head is more convenient
    12 mechanical structure optimization design, the overall shape of the smallest size, not only to save your valuable space, but also the structure of the deformation of high precision engraving
    13 direction before and after the whole material can be Banfang, without cutting
    14 through CE, FDA certification
    Graphic format: BMP, PLT, DXF, DST, AI
    High speed cutting function:
    Red light positioning function: optional
    Offline output function:
    Layered output function:
    Air cooling functions:
    Before and after the material function:
    Foot switch function: optional
    Ultra quiet fan: optional
    Oil water separation type air compressor: optional
    Intelligent cold water machine: optional
    Engraving and cutting path optimization, to provide users with a variety of ways to optimize the path.
    When the output has "walk" function, it is convenient to find the place of discharge.
    Support array output, and automatic full of working table.
    Can simulate the output effect of the output display.
    Arbitrary definition of the origin location, convenient processing.
    Big data graphics processing speed.
    15M data can be processed immediately after the completion of the.
    In the process of high speed cutting and engraving, the laser intensity is constant, which ensures the consistency of the machining depth.
    Engraving machine configuration 64M above large capacity memory, at the same time to store more than one operating data, to achieve automatic operation from the computer.
    Shutdown file is not lost, easy to achieve bulk operations.
    Engraving speed can reach 1500mm/s, curve cutting speed can reach 500mm/s, engraving precision can reach 0.1mm.
  • Laser type Sealed off CO2 laser
    laser power 50W
    Working area 600*400mm
    Engraving speed 0-1500mm/s
    Cutting speed 0-800mm/s
    Repeat accuracy ±0.05mm
    Motion system CNC control system
    Cooling mode Forced water cooling and protection system
    working voltage 110/220±10% 50/60HZ
    Power <1300w
    working temperature 0℃-45℃
    Working humidity 5%-95%
    control software Genuine sunylaser software
    Support format BMP,PLT,AI,DXF,DST,JPG,CDR,HPGL
    Compatible software Auto CAD,CoreIDraw
    Outline dimension 1070*770*520(mm)
    Weight 110KG
  • Suitable for wood, paper, leather, cloth, organic glass, epoxy resin, acrylic, wool, plastic, rubber, ceramic, crystal, jade, bamboo products, such as non metal materials.

















  • Suitable for leather garment, shoe cap, cloth toys, computer embroidery and clipping, electronic and electrical appliances, model, arts and crafts, advertisement decoration, printing and packaging, paper products, such as industry
