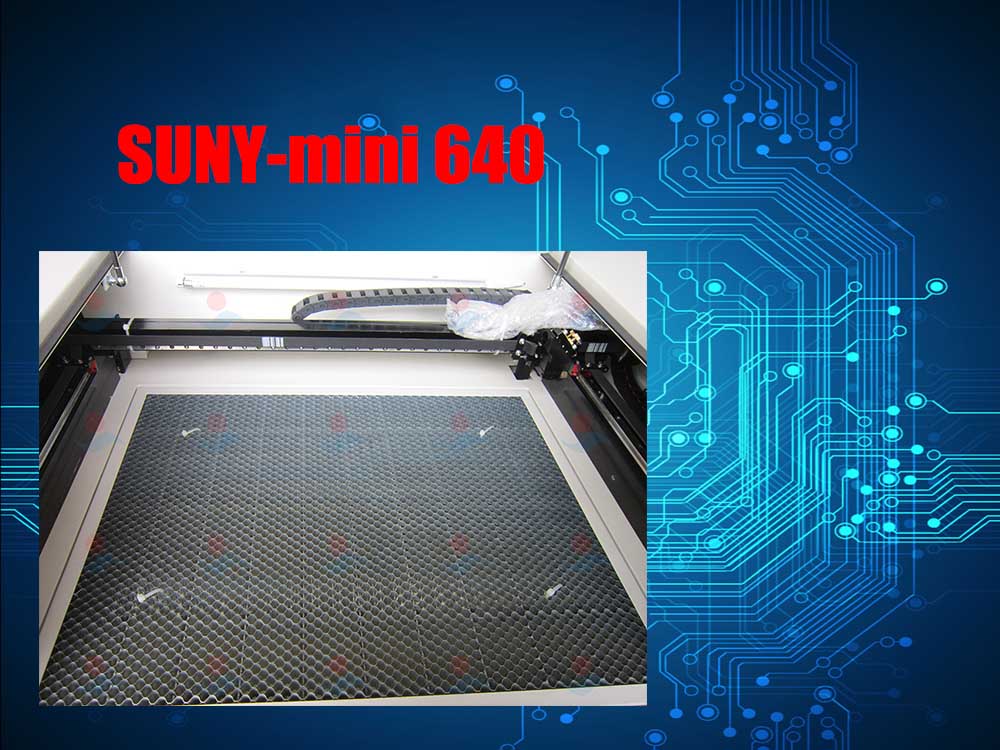

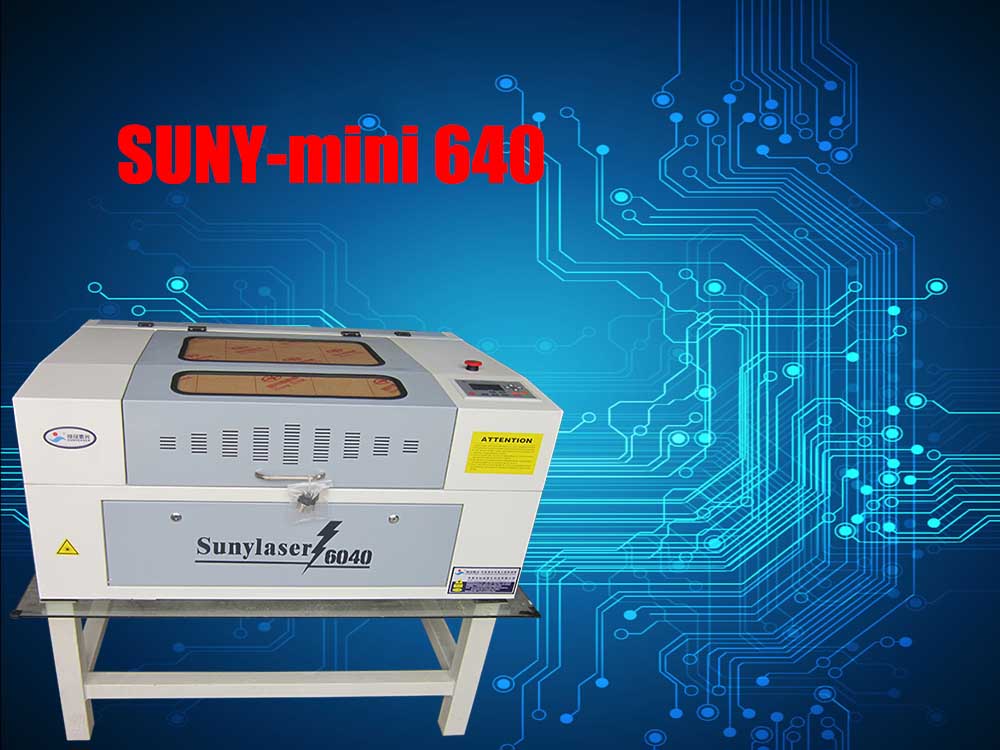

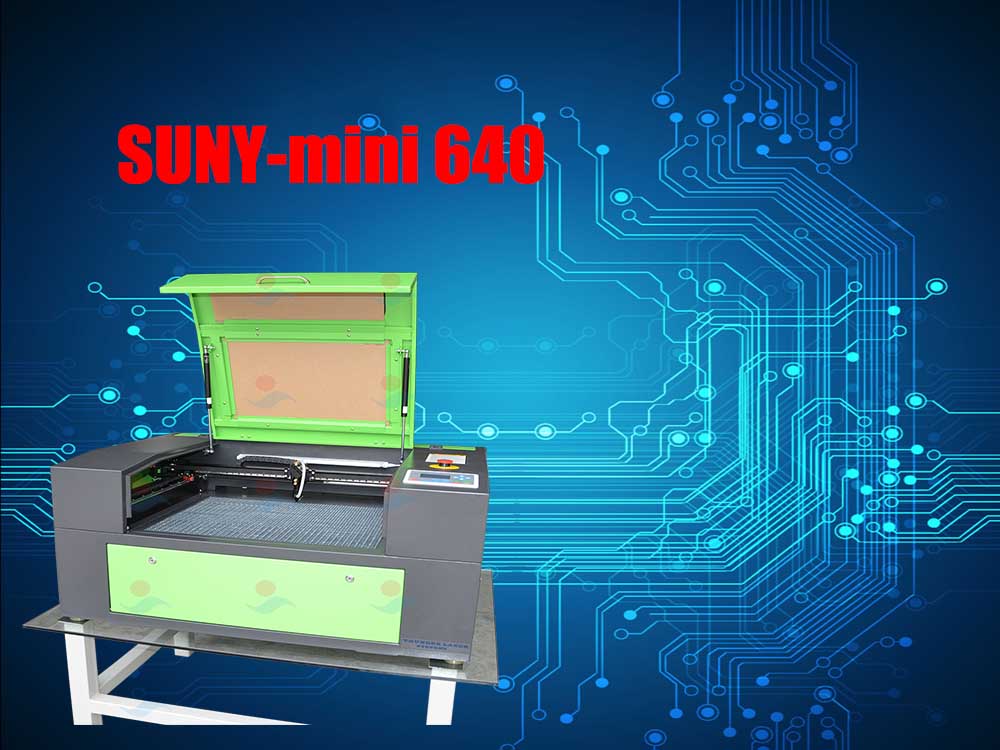

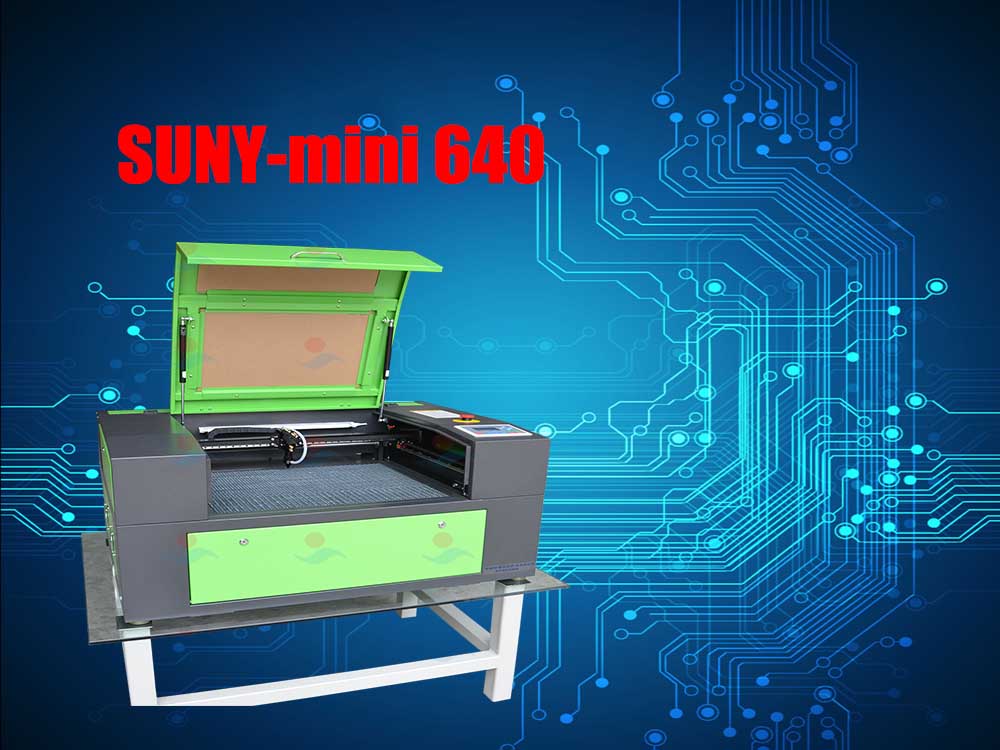

MINI6040 laser cutting machine
2016-03-31
- Introduction
- Configure
- Characteristic
- Parameter
- Material
- Industry
- Dongguan Xu Yang Laser Technology Co., Ltd. after a period of research and development, MINI640 type of laser cutting machine finally successfully launched into the market, in put into the market for a few months, the customer is very good response, many customers gradually add to the machine. 640 laser cutting machine is an economical and applicable machine, she broke the traditional laser equipment expensive defects, without changing the machine configuration on the basis of the whole equipped with imported guide rail, imported motor, imported lenses.
- South Korea imports six balanced linear guide rail
United States ray stepper motor
United States ray drive
Singapore optical system
Japan imported transmission belt
Embedded Samsung 128M memory
2.0U disk interface
New generation master card
LCD
in Chinese and English 50W Chinese Academy of science and the development of laser tube
High performance laser power supply
Xu Yang new software development system
Taiwan switching power supply
Guangzhou wind system
Zhongshan air compressor
- 1 imported square linear guide, life can reach more than 20 years
2. Optical lens using high strength Gold silicon and aspheric focusing lens such that the lens resistant paint, high temperature resistant, does not need to be replaced frequently, greatly reducing the use cost, non spherical lens focusing small diameter, better cutting effect < br / > 3 towline imported from Germany
4 all the optical frame has a simple structure, convenient adjustment, easy maintenance of
lens 5 using DSP motion control system, running smooth, fast computing speed
6 modular design, installation, anti-interference ability, easy to repair and replacement parts
7 emergency stop switch. You can quickly turn off the power supply
8 filter to improve the anti-interference performance of the machine
9 DC switching power supply
10 universal wheel base rubber is used to facilitate the adjustment and stability of the machine
11 install the U.S. import chip driver
12 unique "side blowing" system to effectively protect the laser head, so that the maintenance of the laser head is more convenient
13 mechanical structure optimization design, the overall shape of the smallest size, not only to save your valuable space, but also the structure of the deformation of high precision engraving
13 direction before and after the whole material can be Banfang, without cutting
14 through CE, FDA certification
Graphic format: BMP, PLT, DXF, DST, AI
High speed cutting function:
Red light positioning function: you can choose
Offline output function:
Layered output function:
Air cooling functions:
Before and after the material function:
Foot switch function: optional
: optional telephoto lens Open cover protection:
Emergency stop switch:
Laser type Domestic CO2 laser laser power 50W Working area 600*400mm Engraving speed 0-1500mm/s Cutting speed 0-800mm/s Repeat accuracy ±0.05mm Motion system CNC control system Cooling mode Forced water cooling and protection system working voltage 220±10% 50/60HZ Power 1250w working temperature 0℃-45℃ Working humidity 5%-95% control software Genuine sunylaser software Support format BMP,PLT,AI,DXF,DST,JPG,CDR,HPGL Compatible software Auto CAD,CoreIDraw Outline dimension 1070*770*51（mm） Weight 130KG

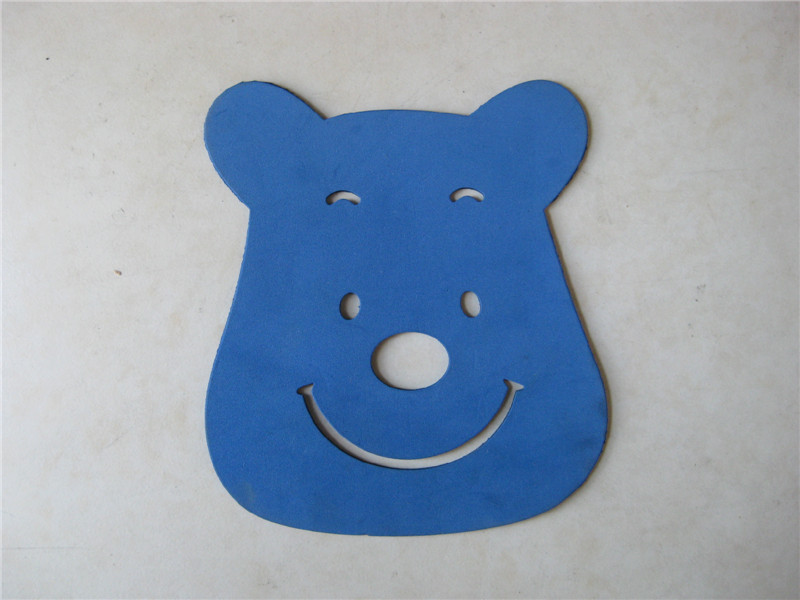

Wood, paper, leather, cloth, organic glass, resin, acrylic, wool, plastic, rubber, ceramic, crystal, jade, bamboo and non metallic materials.

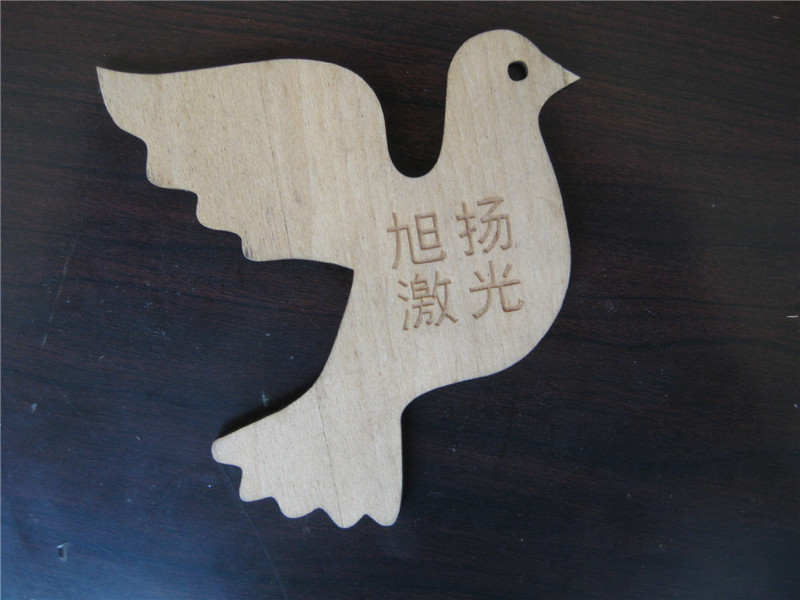

wood

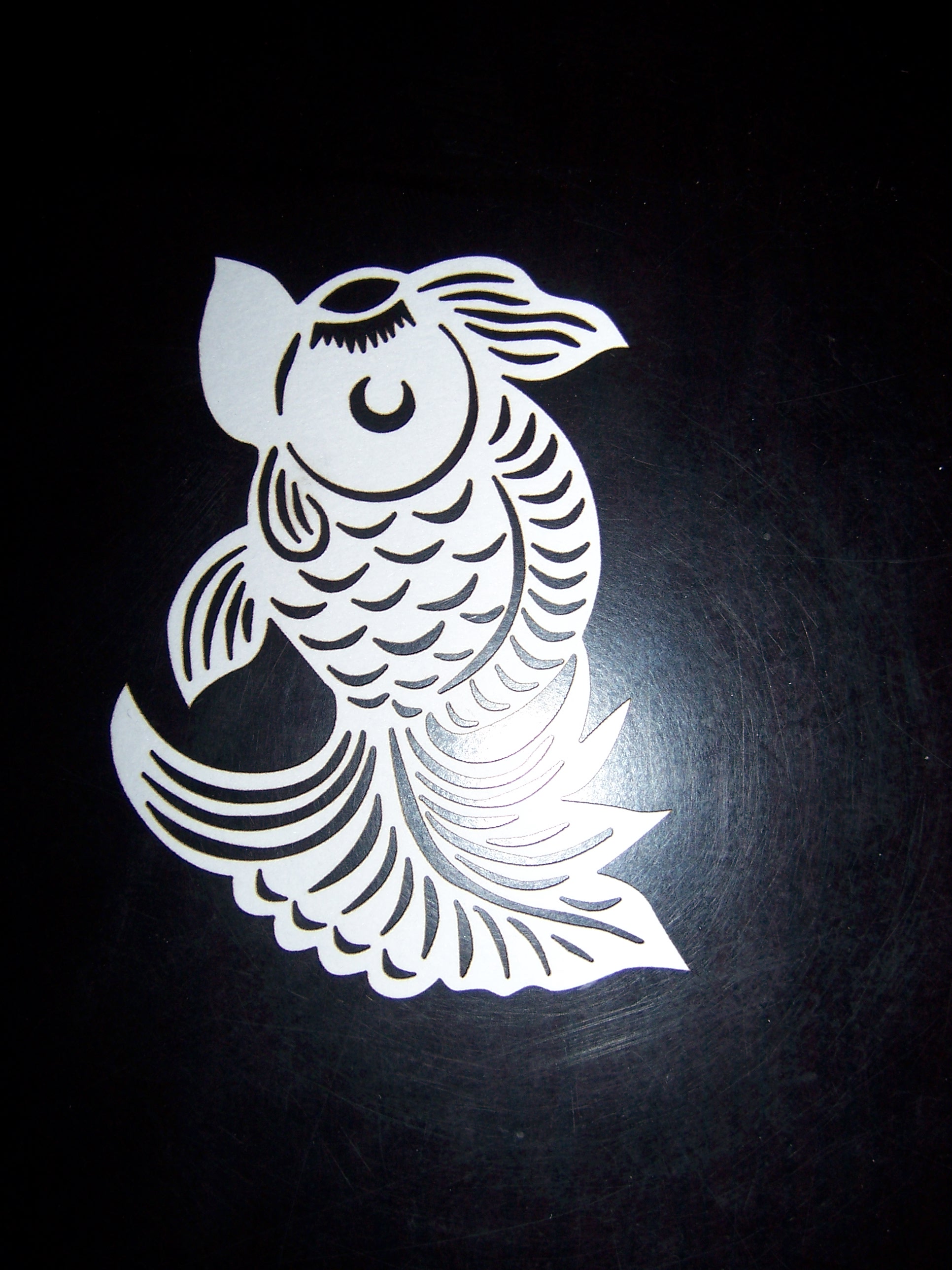

paper
Wool
Acrylic cutting
Plate cutting

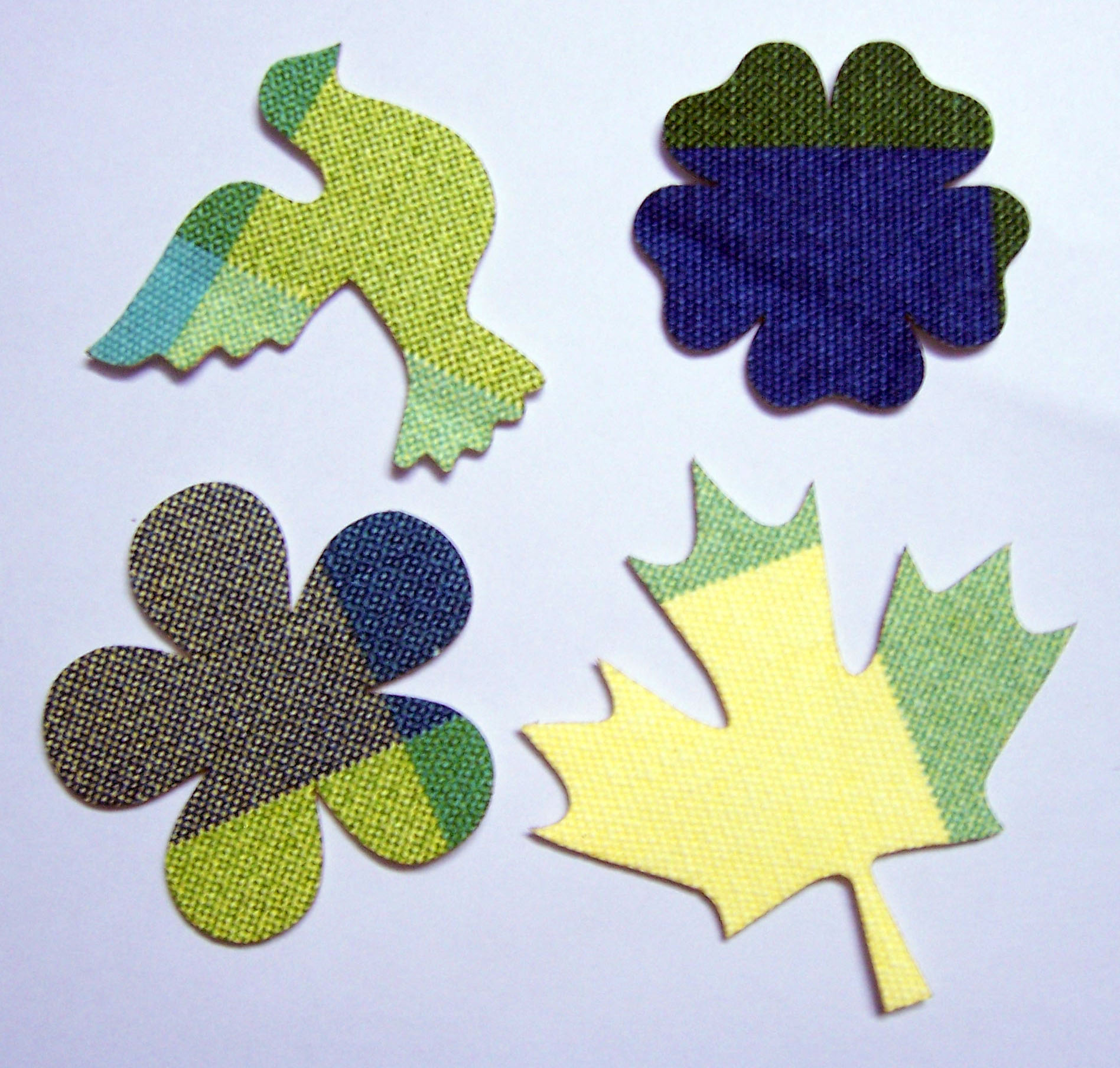

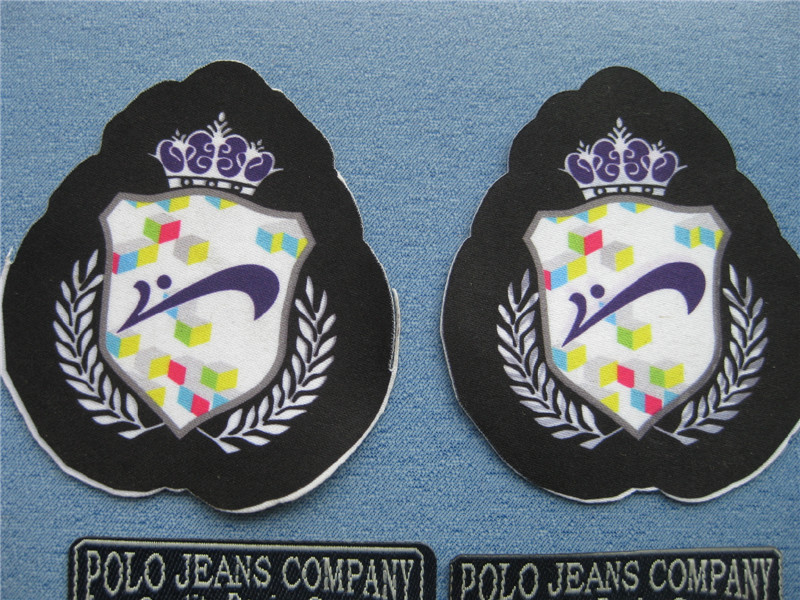

Garment cutting
- This machine is used for embroidery, leather products, bamboo and wood products, electronic and electrical appliances, model, arts and crafts, advertisement decoration, printing and packaging, paper products, such as industry.
