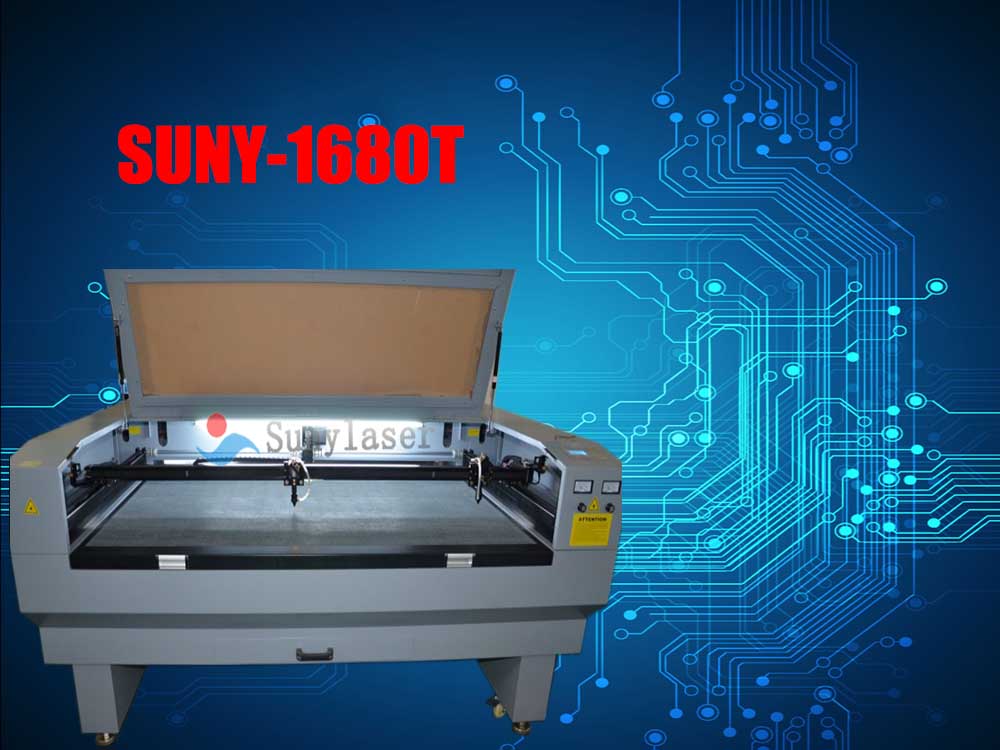

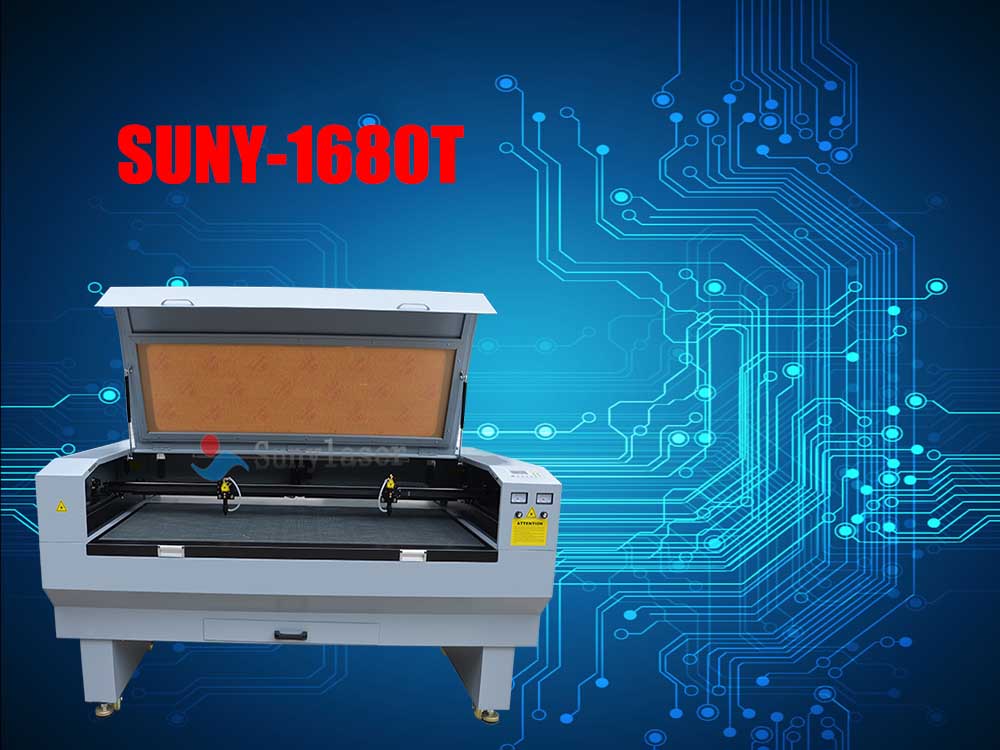

Suny-1680T double head laser cutting machine
2016-03-26
- Introduction
- Configure
- Characteristic
- Parameter
- Material
- Industry
- Suny-1680T laser engraving machine is a specialized crop industries for the design of aircraft, mainly speed, high precision, high power. Xu Yang C series laser machine adopts imported from South Korea six balanced linear guide, even if the speed is reached soon, it will not affect the effect and dynamical systems with three-phase stepper driving system, using DSP digital control technology, USB2.0 high speed data transmission, support u disk download data, to achieve full offline, can realize a computer support numerous sets of laser machine, greatly save cost for customers, Xu Yang C series laser machine software by Xu Yang the latest operating system SUNYLASERSOFT software, the operation is flexible and convenient and humanized, Xu Yang C series laser machine its widely application in leather garment, shoe cap, hot drilling template making, acrylic sheet, crafts and advertising crystal industry.
- A. the United States imported stepper motor and drive system
B.SUNYLASER control system
C. uses the foreign import six balanced linear guide rail
D. dual transmission mode for the USB2.0 port
Yingde E. LCD, Humanity button control panel
F. laser made (80/100/120/130/150/170W) matching
G. optical system uses laser Singapore imports all lenses
H. high strength stainless iron honeycomb plate
The I. chassis integration structure
J. support U disk to download data
- 1 imported square linear guide, life can reach more than 20 years
2. Optical lens using high strength Gold silicon and aspheric focusing lens such that the lens resistant paint, high temperature resistant, does not need to be replaced frequently, greatly reducing the use cost, non spherical lens focusing small diameter, better cutting effect < br / > 3 towline imported from Germany
4 all the optical frame has a simple structure, convenient adjustment, easy maintenance of
lens 5 using DSP motion control system, running smoothly. Modular unified design, installation, anti-interference ability, easy to repair and replacement parts
6 emergency stop switch. You can quickly turn off the power supply
7 filter to improve the anti-interference performance of the machine
8 DC switching power supply
9 universal wheel base rubber is used to facilitate the adjustment and stability of the machine
10 install the U.S. import chip driver
11 unique "side blowing" system to effectively protect the laser head, so that the maintenance of the laser head is more convenient
12 mechanical structure optimization design, the overall shape of the smallest size, not only to save your valuable space, but also the structure of the deformation of high precision engraving
13 direction before and after the whole material can be Banfang, without cutting
14 through CE, FDA certification
Graphic format: BMP, PLT, DXF, DST, AI
High speed cutting function:
Red light positioning function: you can choose
Offline output function:
Layered output function:
Air cooling functions:
Before and after the material function:
Foot switch function: optional
Laser type Domestic CO2 laser laser power 80W/100W/120W/130W/150W/170W(Matching) Working area 1600*800mm Engraving speed 0-1500mm/s Cutting speed 0-800mm/s Repeat accuracy ±0.05mm Motion system CNC control system Cooling mode Forced water cooling and protection system working voltage 220V±10%/50HZ working temperature 0℃-45℃ Working humidity 5%-95% control software Genuine sunylaser software Support format BMP、PLT、AI、DXF、DST Outline dimension 2150*1460*1150mm Weight 320KG

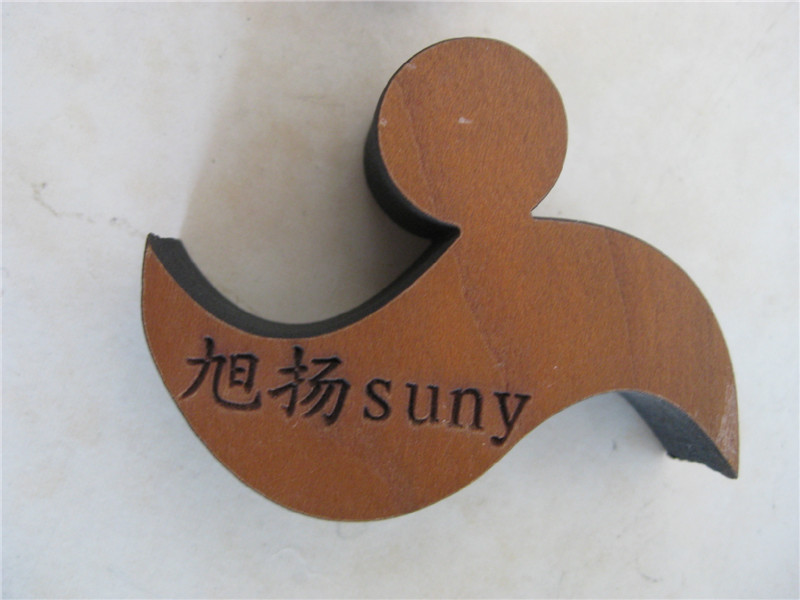

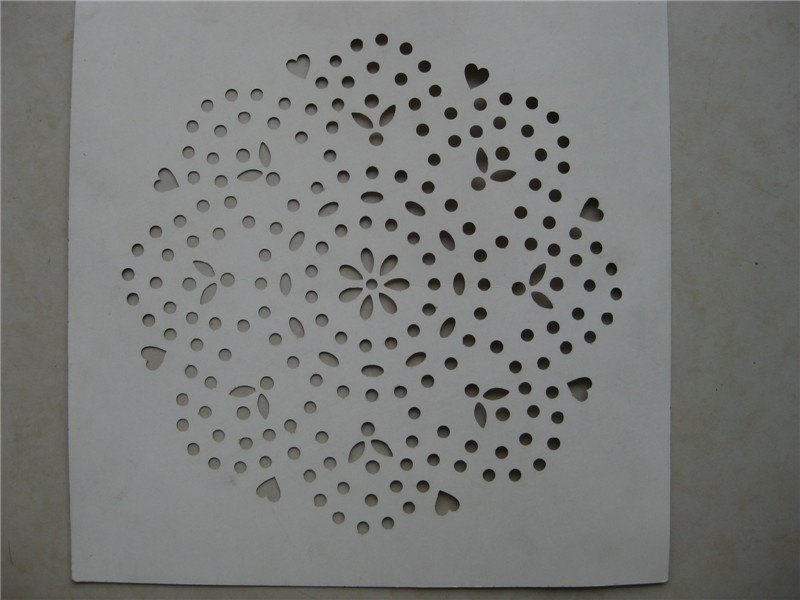

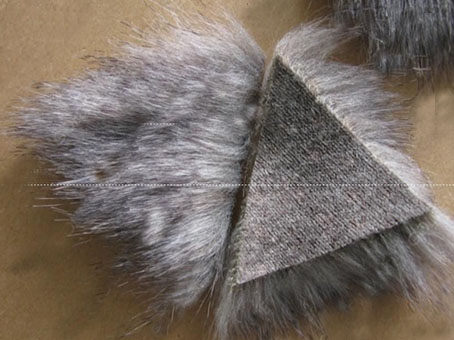

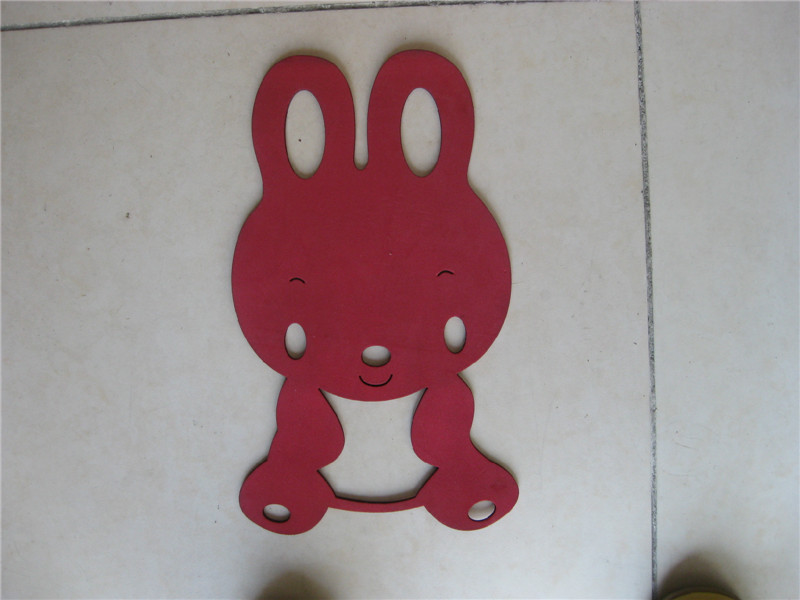

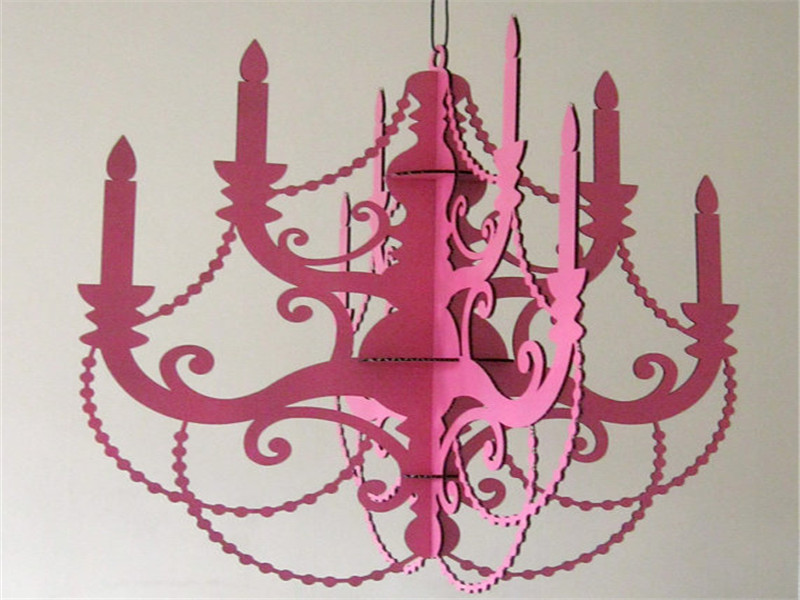

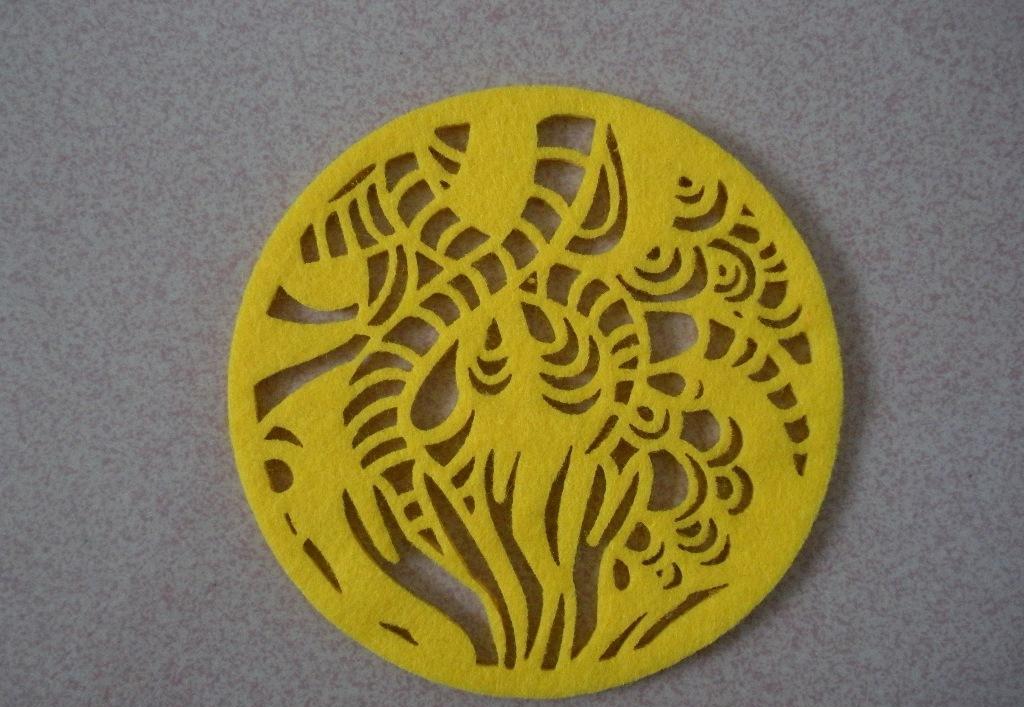

Suitable for wood, paper, leather, cloth, organic glass, epoxy resin, acrylic, wool, plastic, rubber, ceramic, crystal, jade, bamboo products, such as non metal materials.

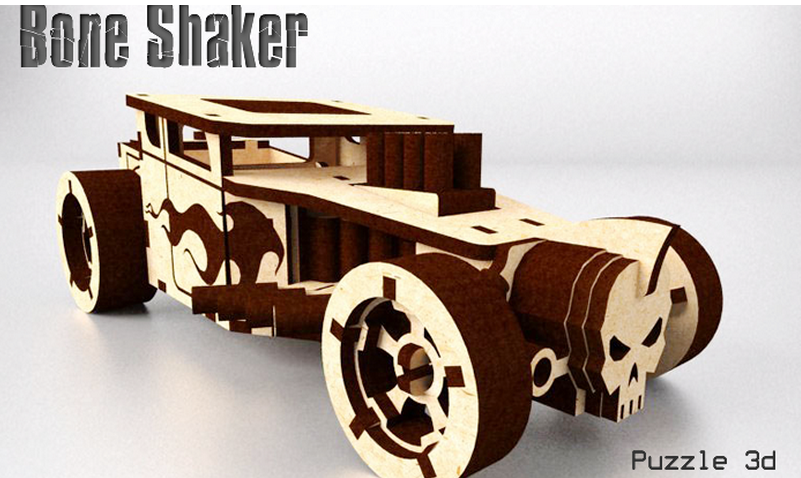

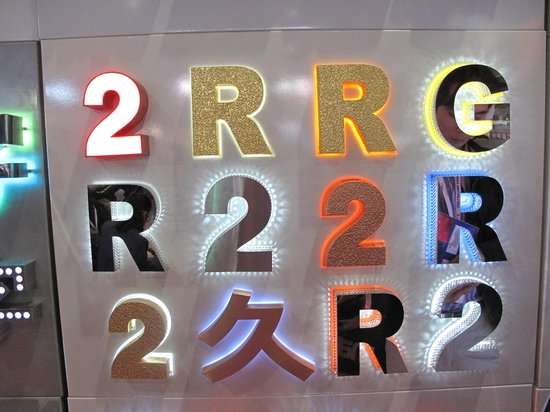

- Applicable to garment leather, cloth toys, computer embroidery and clipping, electronic and electrical appliances, clothing the drilling template, model, arts and crafts, advertisement decoration, printing and packaging, paper products, such as industry
