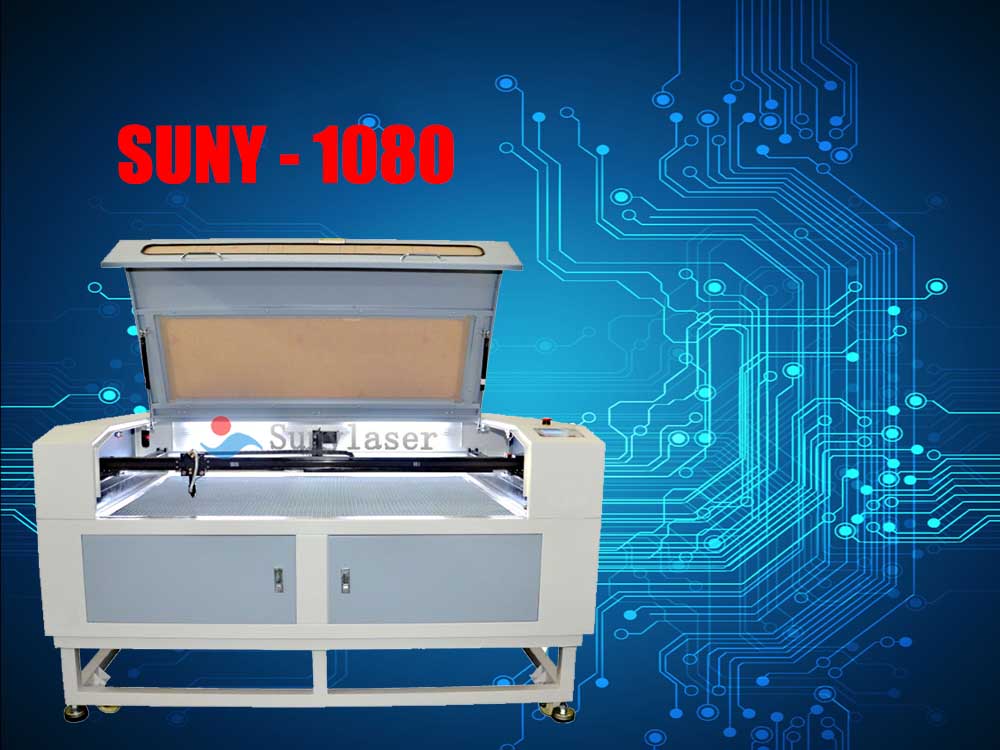

Suny-1080 laser engraving machine


  • Introduction
  • Configure
  • Characteristic
  • Parameter
  • Material
  • Industry
  • 1080 laser engraving machine is a special type of design for the cutting industry, mainly reflects the speed, high precision, high power and so on. Xu Yang C series laser machine adopts imported from South Korea six balanced linear guide, even if the speed is reached soon, it will not affect the effect and dynamical systems with three-phase stepper driving system, using DSP digital control technology, USB2.0 high speed data transmission, support u disk download data, to achieve full offline, can realize a computer support numerous sets of laser machine, greatly save cost for customers, Xu Yang C series laser machine software by Xu Yang the latest operating system SUNYLASERSOFT software, the operation is flexible and convenient and humanized, Xu Yang C series laser machine its widely application in leather garment, shoe cap, hot drilling template making, acrylic sheet, crafts and advertising crystal industry.
  • A. the United States imported stepper motor and drive system
    B.SUNYLASER control system
    C. uses the foreign import six balanced linear guide rail
    D. dual transmission mode for the USB2.0 port
    E. Chinese liquid crystal display, user-friendly button control panel
    F. domestic laser (80/100/120/130/150/170) matching
    G. optical system uses all imported laser lens
    H. high strength stainless steel honeycomb base plate
    I. chassis integration structure
    J. supports U disk download data
  • 1 cut optimal cutting path, the shortest path can work, save time, improve work efficiency.
    2 Chinese large screen LCD display, users can randomly access to stored documents, user-friendly operation convenient.
    3. System transfer graphics data, can be a simple layout editor (such as zoom, rotate, copy etc.).
    4 can be layered output data, each layer can be defined independently of the output power, output speed, laser mode (engraving, cutting, etc.), and the definition of parameters for each layer automatically saved.
    5 images can be carved, the vector map to draw lines, cutting and engraving, and you can set the accuracy of carving.
    6.USB data transmission, but also U disk operation, easy to operate, fast.
  • Laser type Domestic CO2 laser
    laser power 80W/100W/120W/130W/150W/170W(Matching)
    Working are 1000*800mm
    Engraving speed 0-1500mm/s
    Cutting speed 0-800mm/s
    Repeat accuracy ±0.05mm
    Motion system CNC control system
    Cooling mode Forced water cooling and protection system
    working voltage 220±10% 50HZ
    Power 1250W
    working temperature 0℃-45℃
    Working humidity 5%-95%
    control software Genuine sunylaser software
    Support format BMP,PLT,AI,DXF,DST
    Weight 270KG

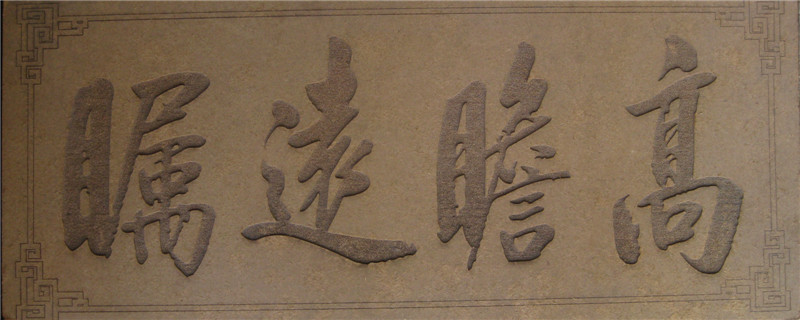

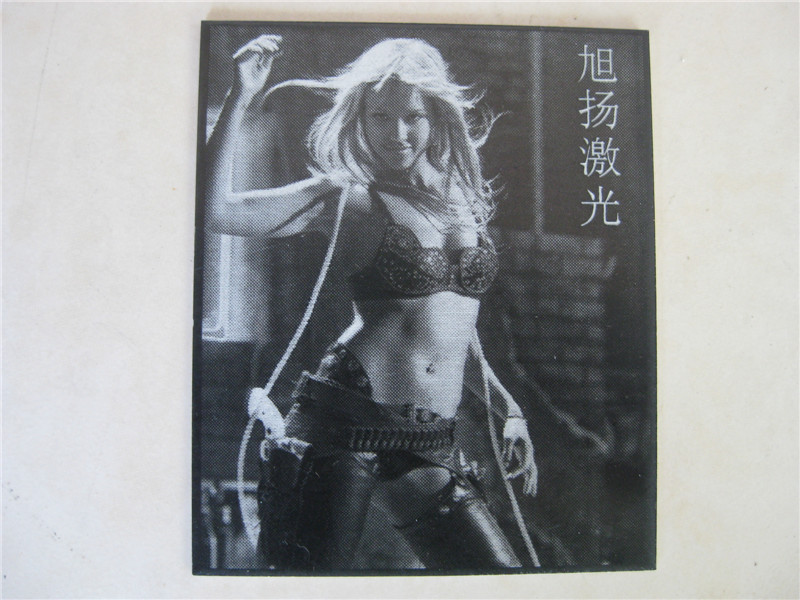

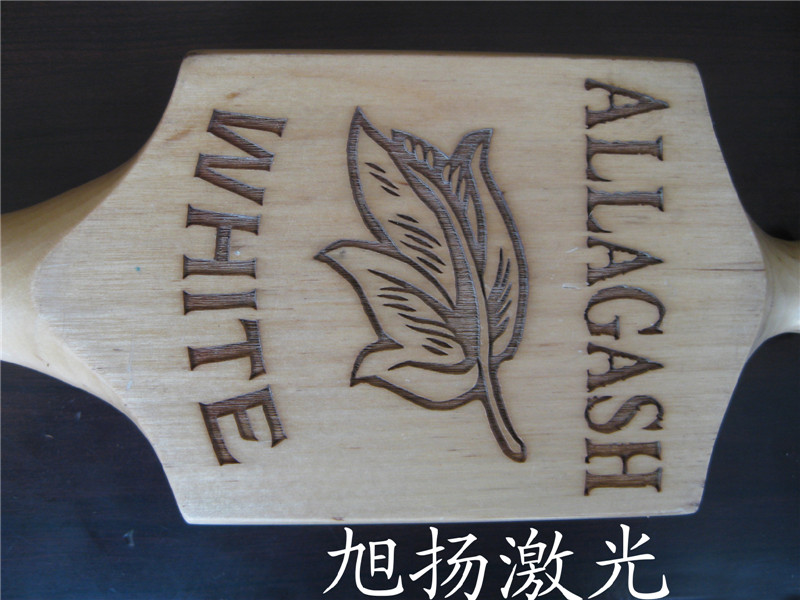

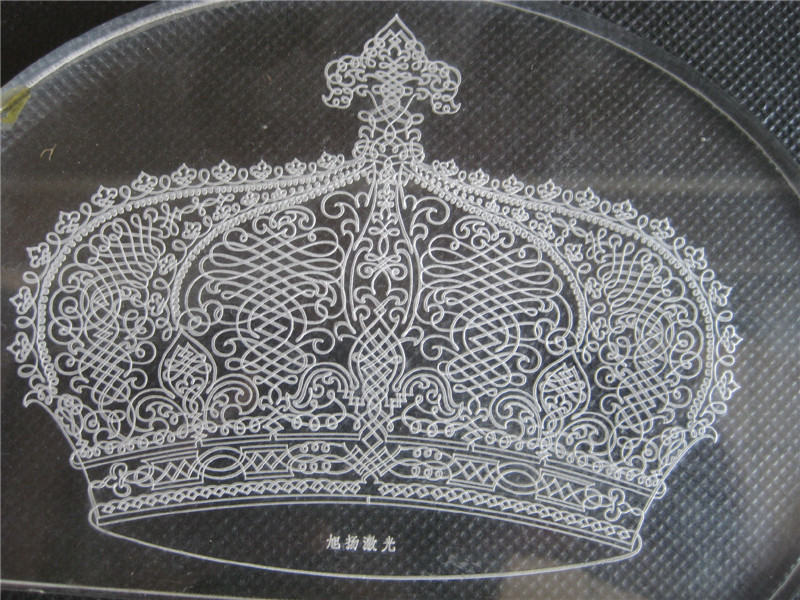

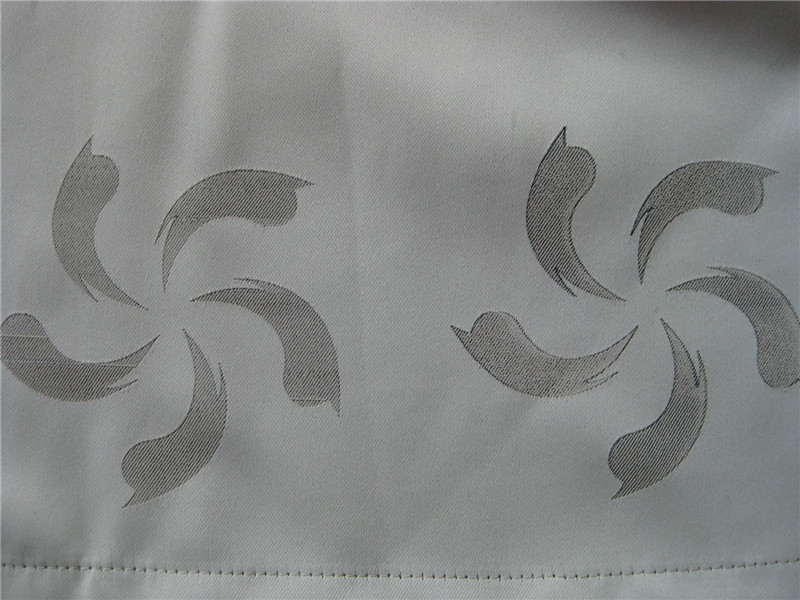

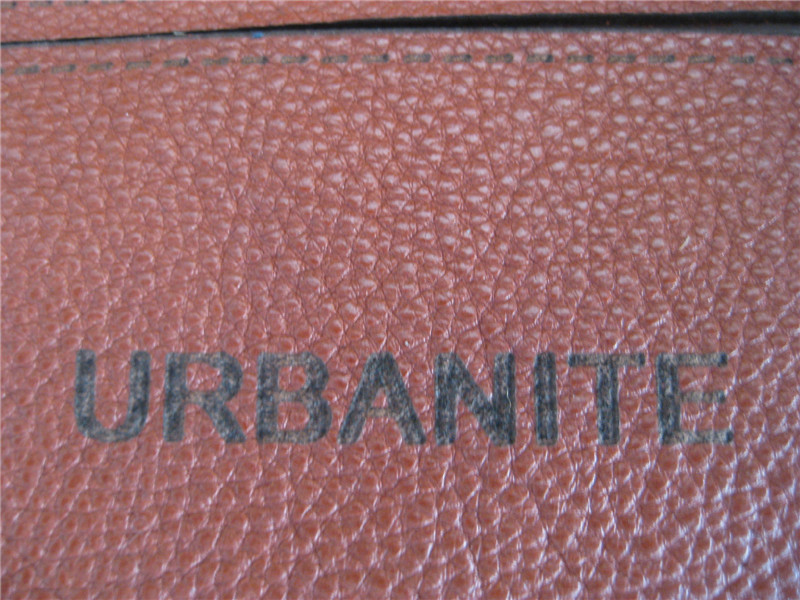

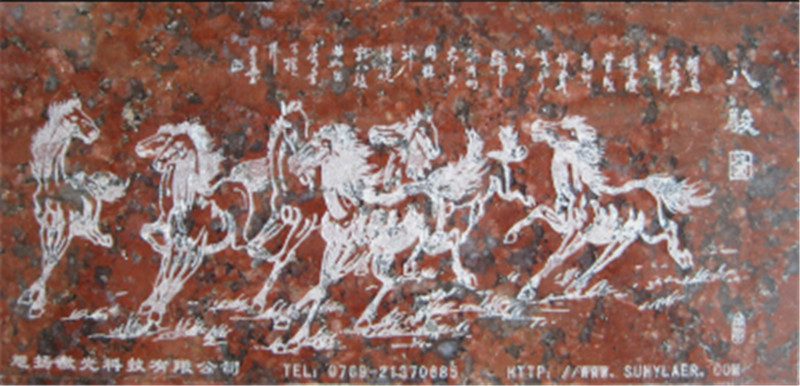

  • This product is suitable for wood, paper, leather, cloth, organic glass, epoxy resin, acrylic, wool, plastic, rubber, ceramic, crystal, jade, bamboo products, such as non metal materials.







  • This machine is suitable for leather garment, cloth toys, computer embroidery and clipping, electronic and electrical appliances, clothing the drilling template, model, arts and crafts, advertisement decoration, printing and packaging, paper products, such as industry.
