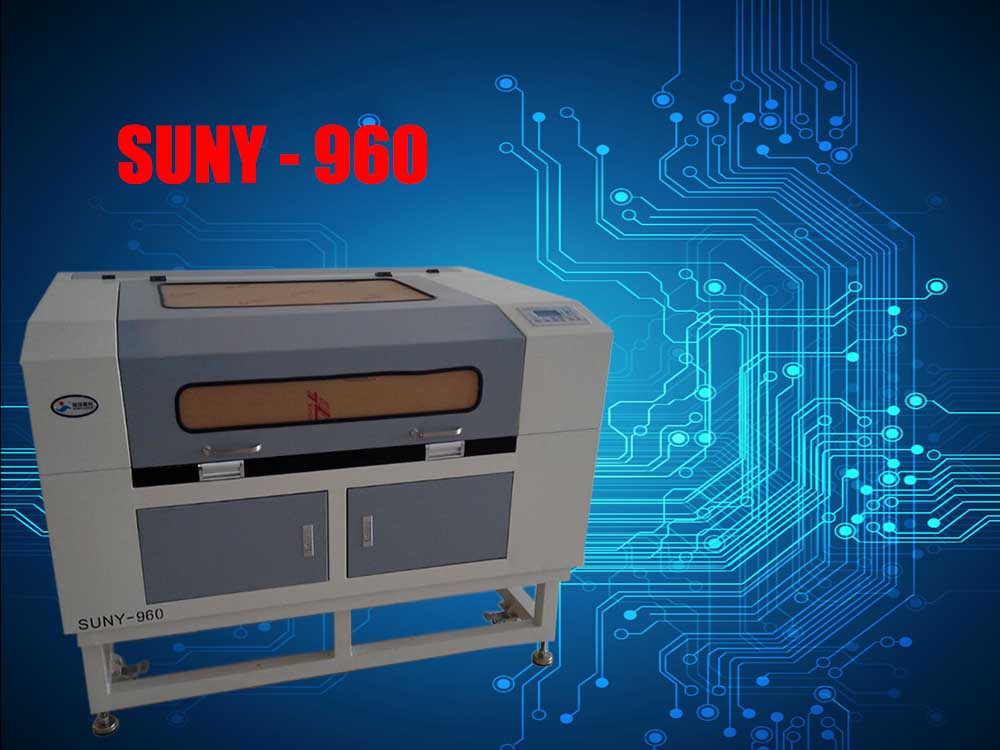

Suny-960 laser engraving machine

2016-03-25

  • Introduction
  • Configure
  • Characteristic
  • Parameter
  • Material
  • Industry
  • SUNY-960 laser engraving machine is a dedicated to the cutting industry and design models, the main embodiment of speed, high precision, power and other characteristics. Xu Yang C series laser machine adopts imported from South Korea six balanced linear guide, even if the speed is reached soon, it will not affect the effect and dynamical systems with three-phase stepper driving system, using DSP digital control technology, USB2.0 high speed data transmission, support u disk download data, to achieve full offline, can realize a computer support numerous sets of laser machine, greatly save cost for customers, Xu Yang C series laser machine software by Xu Yang the latest operating system SUNYLASERSOFT software, the operation is flexible and convenient and humanized, Xu Yang C series laser machine its widely application in leather garment, shoe cap, hot drilling template making, acrylic panel, crafts and advertising word crystal industry
  • A. the United States imported stepper motor and drive system
    B.SUNYLASER control system
    C. uses imported linear guide rail
    D. dual transmission mode: Industrial serial port, USB port
    E. Chinese liquid crystal display, user-friendly button control panel
    F. domestic laser (80/100/120/130/150/170W) matching
    G. optical system uses all imported laser lens
    H. high strength stainless steel honeycomb base plate
    I. chassis integration structure
    J. supports U disk download data
  • 1 imported square linear guide, life can reach more than 20 years
    2. Optical lens using high strength Gold silicon and aspheric focusing lens such that the lens resistant paint, high temperature resistant, does not need to be replaced frequently, greatly reducing the use cost, non spherical lens focusing small diameter, better cutting effect < br / > 3 towline imported from Germany
    4 all the optical frame has a simple structure, convenient adjustment, easy maintenance of
    lens 5 using DSP motion control system, running smoothly. Modular unified design, installation, anti-interference ability, easy to repair and replacement parts
    6 emergency stop switch. You can quickly turn off the power supply
    7 filter to improve the anti-interference performance of the machine
    8 DC switching power supply
    9 universal wheel base rubber is used to facilitate the adjustment and stability of the machine
    10 install the U.S. import chip driver
    11 unique "side blowing" system to effectively protect the laser head, so that the maintenance of the laser head is more convenient
    12 mechanical structure optimization design, the overall shape of the smallest size, not only to save your valuable space, but also the structure of the deformation of high precision engraving.
    13 direction before and after the whole material can be Banfang, without cutting.
    14 through FDA, CE certification.
  • Laser type
    CO2 laser
    laser power

    80W/100W/120W/130W/150W/170W(Matching)

    Working area
    900*600MM
    Engraving speed
    0-1500mm/s
    Cutting speed
    0-800mm/s
    Repeat accuracy/span>
    ±0.05mm
    Motion system
    CNC control system
    Cooling mode
    Forced water cooling and protection system
    working voltage
    220±10% 50HZ
    Power
    1000w
    working temperature
    0℃-45℃
    Working humidity
    5%-95%
    control software
    Genuine sunylaser software
    Support format
    BMP PLT AI DXF DST
    Outline dimension 1450*1100*1105(mm)
    Weight
    230KG
  • Suitable for wood, paper, leather, cloth, organic glass, epoxy resin, acrylic, wool, plastic, rubber, ceramic, crystal, jade, bamboo products, such as non metal materials.

























  • Applicable to garment leather, cloth toys, computer embroidery and clipping, electronic and electrical appliances, clothing the drilling template, model, arts and crafts, advertisement decoration, printing and packaging, paper products, such as industry
